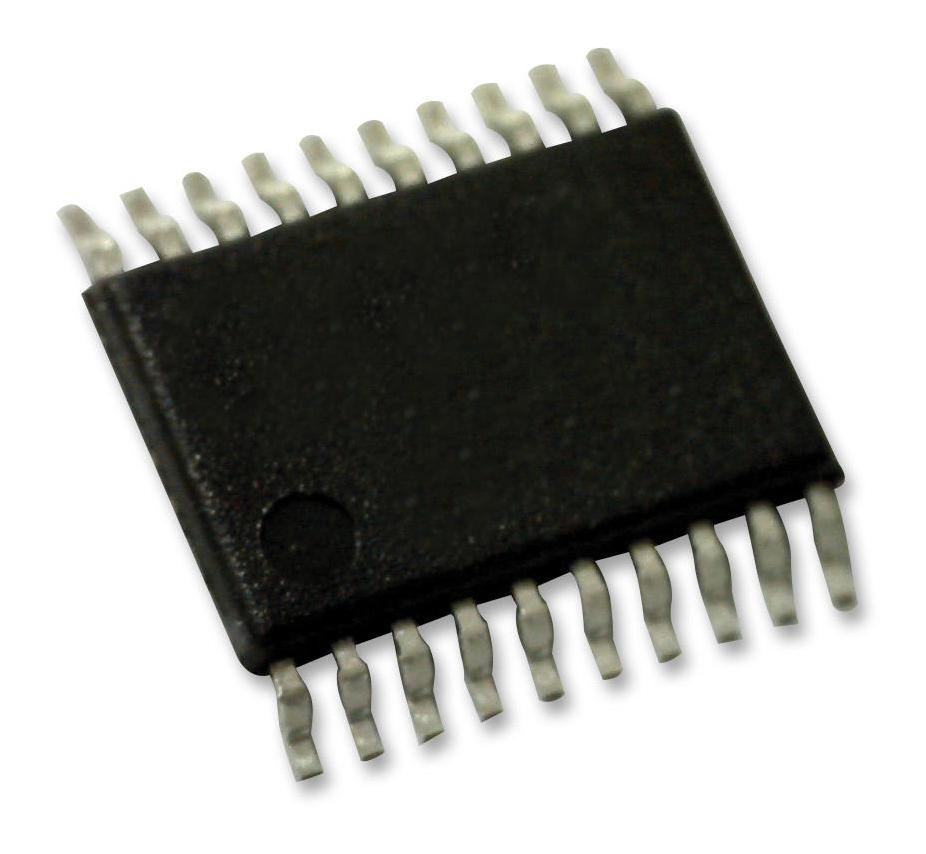

ONSEMI 74VHC573MTC Octal D-Type Latch
The ONSEMI 74VHC573MTC is an advanced high-speed CMOS octal latch with 3-STATE output fabricated with silicon gate CMOS technology. It achieves high-speed operation while maintaining low power dissipation. This 8-bit latch is controlled by a latch enable input (LE) and an output enable input (OE), allowing for versatile control in digital circuits. It's designed to interface with 5V to 3V systems and is protected against mismatched supply and input voltages, enhancing system reliability.
ONSEMI 74VHC573MTC Octal D-Type Latch Specifications:
- High Speed: tPD = 5.0ns (Typ.) at VCC = 5V
- High Noise Immunity: VNIH = VNIL = 28% VCC (Min.)
- Power Down Protection: Provided on all inputs
- Low Noise: VOLP = 0.6V (Typ.)
- Low Power Dissipation: ICC = 4µA (Max.) @ TA = 25°C
- Pin and function compatibility: Compatible with 74HC573
- Supply Voltage: 2.0V to +5.5V
- Input Voltage: 0V to +5.5V
- Output Voltage: 0V to VCC
- Operating Temperature: –40°C to +85°C
Buy the 74VHC573MTC ONSEMI Octal D-Type Latch | myMectronic
Purchase the ONSEMI 74VHC573MTC securely online and ensure reliable performance in your digital applications.
Buy Now
Frequently Asked Questions
Where can I buy ONSEMI 74VHC573MTC?
You can click on the BUY or RFQ button to purchase 74VHC573MTC from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74VHC573MTC?
You can download the 74VHC573MTC datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74VHC573MTC?
ONSEMI
