ONSEMI FDD6612A Power MOSFET
The FDD6612A is a high-performance N-Channel PowerTrench MOSFET designed to enhance efficiency in DC/DC converters and motor drive applications. It features low gate charge, low Rds(on), fast switching speeds, and is optimized for high-speed, low-loss switching. The device handles a continuous drain current of 30A at 25°C, with a drain-source breakdown voltage of 30V. It’s suitable for use in synchronous and conventional switching circuits, offering reliable thermal performance and low conduction and switching losses in compact packages.
ONSEMI FDD6612A Power MOSFET Specifications:
- Drain-Source Voltage: 30 V
- Gate-Source Voltage: +20 V
- Continuous Drain Current: 30 A at 25°C
- Power Dissipation: 36 W at 25°C
- Operating Junction Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Case: 3.9°C/W
- Thermal Resistance Junction-to-Ambient: 45°C/W (mounted on a minimum pad), 96°C/W (on a PCB)
- dV/dt Rating: 51 mJ at 27 V
- Avalanche Energy: 51 mJ at 27 V
- Body Diode Forward Voltage: typically 0.8–1.2 V at 23 A
- Gate Charge: 67–94 nC
- Turn-On Delay Time: 9–18 ns
- Switching Time: 4–10 ns

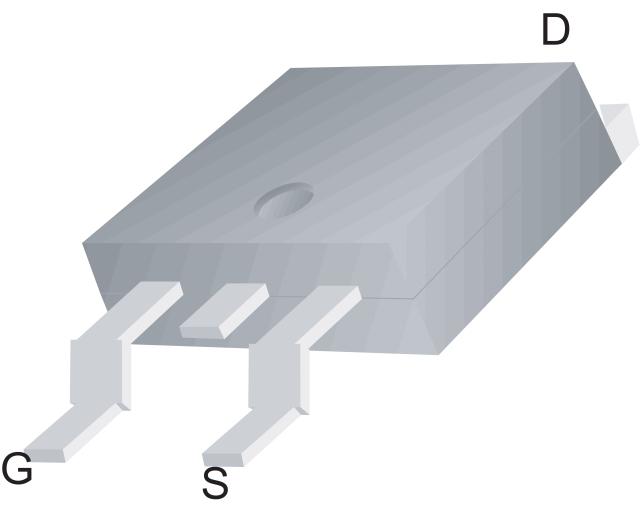

- Package: D-PAK (TO-252), |-PAK (TO-251)
Buy the Buy ON Semiconductor FDD6612A Part Number FDD6612A Online
Order the ON Semiconductor FDD6612A online today and benefit from its excellent switching speed, low Rds(on), and high current capacity. This high-performance N-Channel MOSFET is ideal for enhancing the efficiency of DC/DC converters and motor drives. Its small package design offers reliable thermal management and low conduction losses, making it perfect for compact, high-speed switching applications. Purchase now to ensure your projects perform at their best with proven industry-standard technology from ON Semiconductor.
Buy ON Semiconductor FDD6612A now and experience unmatched reliability and performance in high-speed switching applications, perfect for efficient motor drives and power management.
Frequently Asked Questions
Where can I buy ONSEMI FDD6612A?
You can click on the BUY or RFQ button to purchase FDD6612A from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDD6612A?
You can download the FDD6612A datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDD6612A?
ONSEMI
