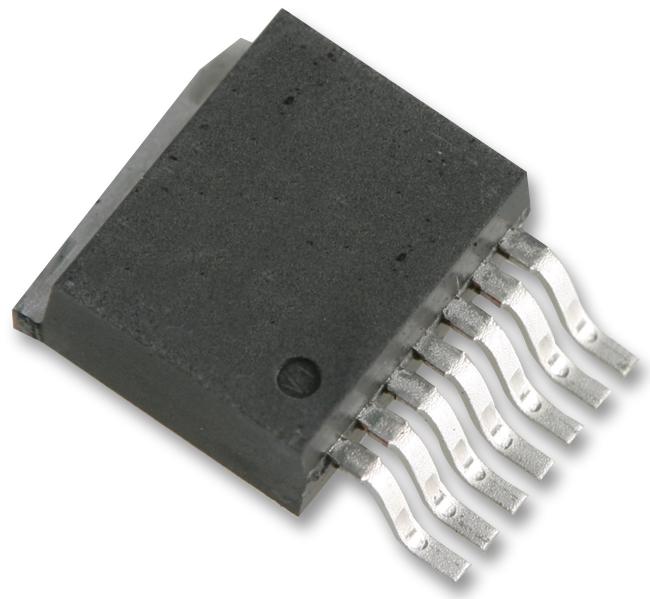

ONSEMI NCV8505D2T50R4G High-Precision Voltage Regulator
The NCV8505 series comprises micropower linear voltage regulators capable of delivering up to 400 mA. Available in fixed and adjustable variants, they feature low quiescent current, high accuracy within ±2.0%, and robust protection features including reverse battery, short circuit, and thermal overload protections. Suitable for battery-powered microprocessor applications, these regulators include active RESET with delay, ENABLE control, and are designed to operate in automotive and EMC environments. They are Pb-Free, AEC qualified, and capable of withstanding transient voltage peaks up to 60 V, ensuring reliable operation in challenging conditions.
ONSEMI NCV8505D2T50R4G High-Precision Voltage Regulator Specifications:
- Output Voltage Options: Adjustable, 2.5 V, 3.3 V, 5.0 V
- Output Voltage Accuracy: ±2.0%
- Maximum Dropout Voltage: 0.6 V at 400 mA
- Quiescent Current in Active Mode: 200 μA
- Sleep Mode Quiescent Current: < 1.0 nA
- Pulse Load Current Limit: 500 mA
- Peak Transient Voltage Tolerance: 60 V
- Reverse Voltage Tolerance: -15 V
- Protection Features: Short circuit, thermal overload, reverse battery
- Output Current Capability: 400 mA
- Pb-Free, AEC Qualified, PPAP Capable
- Operating Temperature Range: -40°C to +150°C
- Package Type: D²PAK-7, Case 936AB
- Pin Functions: DELAY, ENABLE, RESET, GND, SENSE (adjustable only), Vout, Vin
- Package Thermal Resistance: Junction-to-Case 2.0°C/W, Junction-to-Ambient 10-50°C/W
- Tolerance for voltage and temperature: Designed for automotive and EMC endurance
Buy the ON Semiconductor Series NCV Series Voltage Regulator: NCV8505D2T50R4G
Purchase the ON Semiconductor NCV8505D2T50R4G online today. This advanced voltage regulator provides up to 400 mA current, adjustable or fixed voltage options, low quiescent current, and comprehensive protection features. Perfect for battery-powered and automotive microprocessor systems, it ensures reliable regulation with high accuracy within ±2.0%. Its robust design withstands transient voltages up to 60 V, reverse voltages, and thermal overloads, making it an ideal choice for automotive, EMC, and industrial applications. Secure your supply chain with fast online ordering and ensure your projects benefit from proven semiconductor quality and durability.
Get ON Semiconductor NCV8505D2T50R4G today—built for precision, low power consumption, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy ONSEMI NCV8505D2T50R4G?
You can click on the BUY or RFQ button to purchase NCV8505D2T50R4G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV8505D2T50R4G?
You can download the NCV8505D2T50R4G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV8505D2T50R4G?
ONSEMI
