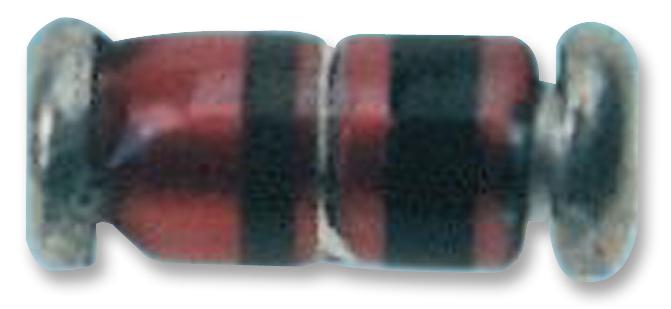

ONSEMI FDLL4150 Small Signal Diode
The FDLL4150 is a high-conductance, ultra-fast small signal diode suitable for general-purpose applications. It features a cathode band for easy identification and can operate within a wide temperature range from -65°C to 200°C. With a maximum junction temperature of 175°C, it supports reverse voltages up to 75V and forward currents up to 200mA. Its fast recovery time and low capacitance make it ideal for high-speed switching in industrial systems, ensuring reliable and efficient performance in various electronic circuit applications.
ONSEMI FDLL4150 Small Signal Diode Specifications:
- Reverse Voltage: 75 V
- Average Rectified Forward Current: 200 mA
- DC Forward Current: 400 mA
- Recurrent Peak Forward Current: 600 mA
- Peak Forward Surge Current: 600 mA
- Storage Temperature Range: -65°C to +200°C
- Operating Junction Temperature: 175°C
- Power Dissipation: 500 mW
- Thermal Resistance, Junction to Ambient: 300 °C/W
- Diode Capacitance: 2.5 pF
- Reverse Recovery Time: 2-4.0 ns
- Forward Voltage: 760-860 mV at 50mA, 820-920 mV at 100mA
- Maximum Junction Temperature: 175°C
Buy the Buy ON Semiconductor FDLL4150 Part Number FDLL4150 Online
Discover the high-performance ON Semiconductor FDLL4150 small signal diode, designed for fast switching and high reliability. With a reverse voltage of 75V and a forward current of 200mA, this diode is ideal for general-purpose and industrial circuit applications. Its ultra-fast recovery time and low capacitance ensure efficient operation in high-speed switching environments. Perfect for circuit protection, high-frequency switching, and fast rectification, the FDLL4150 guarantees robust performance across a broad temperature range, supporting your electronic systems with durability and speed.
Buy ON Semiconductor FDLL4150 now and experience unmatched reliability and high-speed switching performance for industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI FDLL4150?
You can click on the BUY or RFQ button to purchase FDLL4150 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDLL4150?
You can download the FDLL4150 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDLL4150?
ONSEMI
