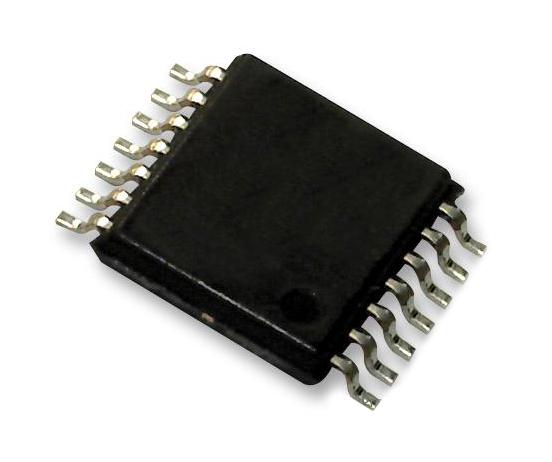

ONSEMI LM339DTBR2G Quad Comparator
The LM339 series consists of quad comparators with high gain and wide bandwidth, suitable for level detection, low-level sensing, and memory applications in consumer, automotive, and industrial electronics. They feature a single supply operation of 3.0 V to 36 V, split supply operation from 1.5 V to +18 V, low input bias current of 25 nA, low offset voltage, TTL and CMOS compatibility, and ESD protection. These Pb-free, RoHS-compliant devices are available in PDIP-14, SOIC-14, and TSSOP-14 packages, with automotive-grade options qualified for harsh environments.
ONSEMI LM339DTBR2G Quad Comparator Specifications:
- Single Supply Operation: 3.0 V to 36 V
- Split Supply Operation: 1.5 V to +18 V
- Input Bias Current: 25 nA (Typ)
- Input Offset Voltage: Low
- Input Common Mode Voltage Range: to GND, Voc
- Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
- ESD Protection: 1500 V (Human Body Model) for most devices
- Maximum Power Dissipation: 1.0 W in plastic package at 25°C
- Operating Temperature Range: -25°C to +85°C (standard), -40°C to +125°C (automotive-qualified NCV2901)
- Package Options: PDIP-14, SOIC-14, TSSOP-14
- RoHS, Halogen Free, BFR Free, Pb-Free
Buy the ON Semiconductor Series Quad Comparator: LM339DTBR2G
Experience the reliability of the ON Semiconductor LM339 DTBR2G quad comparator—ideal for level detection, low sensing applications, and automotive electronics. Designed to operate from 3V to 36V with split supply options, it offers low input bias current of 25 nA, low offset voltage, and TTL/CMOS compatibility. Packaged in Pb-free, RoHS-compliant PDIP-14, SOIC-14, and TSSOP-14 packages, this device is perfect for industrial, automotive, and consumer applications requiring high performance and durability. Order online today for fast delivery and secure sourcing.
Get ON Semiconductor LM339 DTBR2G today—built for precision and long-lasting durability in industrial electronics.
Frequently Asked Questions
Where can I buy ONSEMI LM339DTBR2G?
You can click on the BUY or RFQ button to purchase LM339DTBR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM339DTBR2G?
You can download the LM339DTBR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM339DTBR2G?
ONSEMI
