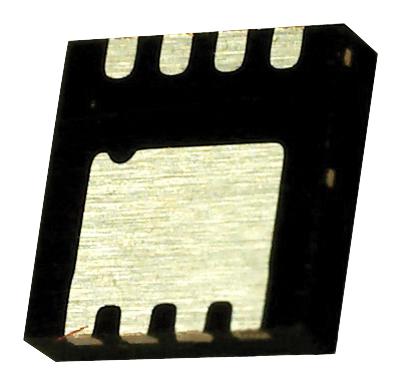

ONSEMI FDMC012N03 Power MOSFET
The FDMC012N03 is a high-performance N-Channel Power Trench MOSFET designed for efficient switching in power conversion applications. Manufactured using advanced Power Trench technology, it features extremely low on-state resistance, high current capacity, and robust thermal performance. Suitable for DC-DC converters and various power management circuits, this device offers excellent conduction efficiency and fast switching capabilities. Its lead-free termination complies with RoHS standards, making it an environmentally friendly choice for modern electronic systems. Designed to operate reliably over a wide temperature range, it ensures long-term durability and efficiency in demanding environments.
ONSEMI FDMC012N03 Power MOSFET Specifications:
- Drain-Source Voltage: 30 V
- Continuous Drain Current: 185 A
- Pulsed Drain Current: 688 A
- Gate to Source Voltage: ±12 V
- Static Drain to Source On Resistance: 1.23 mΩ at Vgg = 10 V
- Maximum Power Dissipation: 64 W
- Operating Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction to Case: 1.95 °C/W
- Thermal Resistance, Junction to Ambient: 53 °C/W
- Drain to Source Breakdown Voltage: 30 V
- Gate to Source Leakage Current: < 100 nA at Vgs = ±12 V
- Gate Threshold Voltage: 0.8 V to 3.0 V
- Capacitances: Input Capacitance 5845 pF, Output Capacitance 1440 pF
- Switching Times: t_on = 16-29 ns, t_off = 43-69 ns
- Total Gate Charge: 78-110 nC
- Body Diode Forward Voltage: 0.7-4 V at 35A
Buy the Buy ON Semiconductor FDMC012N03 Part Number 1234567890 Online
Order the ON Semiconductor FDMC012N03 power MOSFET online today to optimize your power management systems. This device offers excellent conduction efficiency with extremely low on-resistance, high current capacity, and robust thermal performance. Its RoHS compliance ensures environmentally friendly manufacturing, making it suitable for modern electronic devices. Designed for fast switching applications, it delivers reliable performance over a wide temperature range. Purchasing online provides quick delivery and easy integration into your projects, ensuring your power circuits operate efficiently and dependably.
Buy ON Semiconductor FDMC012N03 now and experience unmatched reliability and low on-resistance for power switching in your electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI FDMC012N03?
You can click on the BUY or RFQ button to purchase FDMC012N03 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMC012N03?
You can download the FDMC012N03 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMC012N03?
ONSEMI
