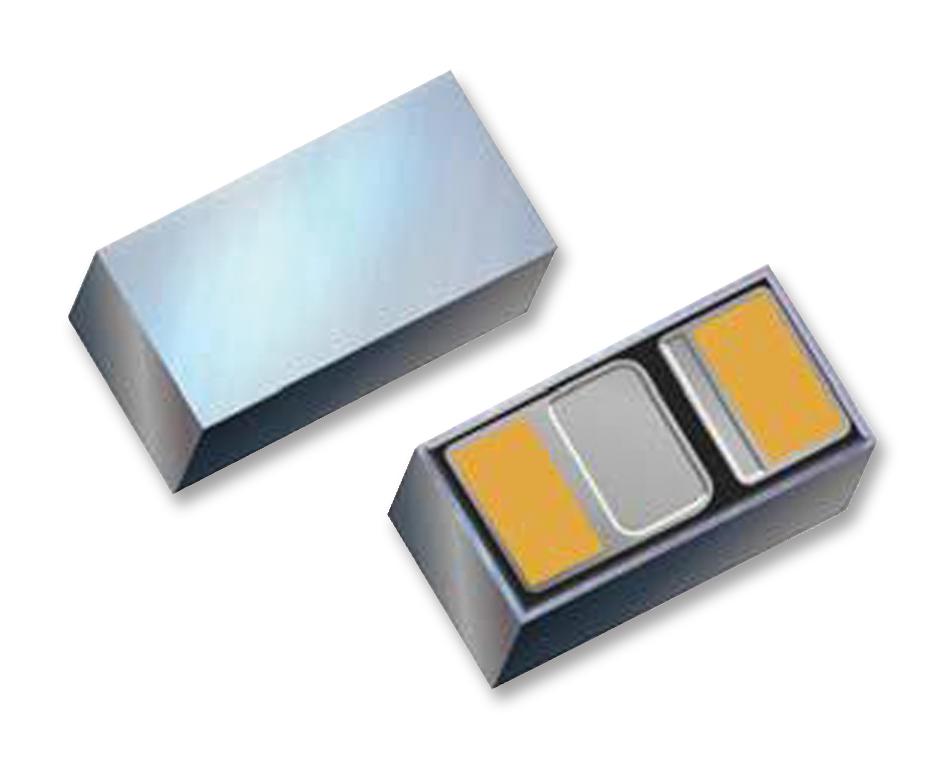

ONSEMI NSR05F40NXT5G High-Speed Schottky Diode
These high-speed Schottky barrier diodes are designed for low forward voltage and leakage current, ideal for power supply circuits, reverse voltage protection, and switching applications. Packaged in a compact CSP form factor, they offer excellent thermal performance and are RoHS compliant, making them suitable for mobile devices, cameras, and consumer electronics. With a maximum reverse voltage of 40V and continuous forward current of 500mA, these diodes ensure reliable performance in space-constrained designs. They feature low ESD ratings and high switching speeds, perfect for modern high-efficiency electronic systems.
ONSEMI NSR05F40NXT5G High-Speed Schottky Diode Specifications:
- Reverse Voltage: 40 V
- Forward Current (DC): 500 mA
- Repetitive Peak Forward Current: 4.0 A
- Total Power Dissipation: 1.3 W @ Ta=25°C
- Thermal Resistance, Junction-to-Ambient: 94°C/W
- Forward Voltage: 0.340 V at 100 mA, 0.420 V at 500 mA
- ESD Rating: Human Body Model >8 kV, Machine Model > 400 V
- Storage Temperature Range: -40°C to +125°C
- Operating Junction Temperature: +150°C
- Package Type: CSP 0402
- Low Reverse Leakage: 15 μA at 10 V, 75 μA at 40 V
- High switching speed and low thermal resistance
- RoHS and halogen free, Pb-Free compliant
Buy the On Semiconductor Series NSRO Schottky Barrier Diode: NSROSF40NXT5G
Purchase the high-speed Schottky diode NSROSF40NXT5G from trusted suppliers online today. Designed for efficient power switching and reverse voltage protection, this compact CSP package offers low forward voltage, low leakage current, and excellent thermal performance. Its high-speed switching speed makes it ideal for consumer electronics, mobile devices, and high-efficiency power supplies. With robust ESD protection and RoHS compliance, buying online ensures quick delivery, authentic quality, and warranty support for your critical electronic applications.
Buy On Semiconductor NSROSF40NXT5G now and experience unmatched reliability and high-speed switching capabilities for your power management needs.
Frequently Asked Questions
Where can I buy ONSEMI NSR05F40NXT5G?
You can click on the BUY or RFQ button to purchase NSR05F40NXT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSR05F40NXT5G?
You can download the NSR05F40NXT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSR05F40NXT5G?
ONSEMI
