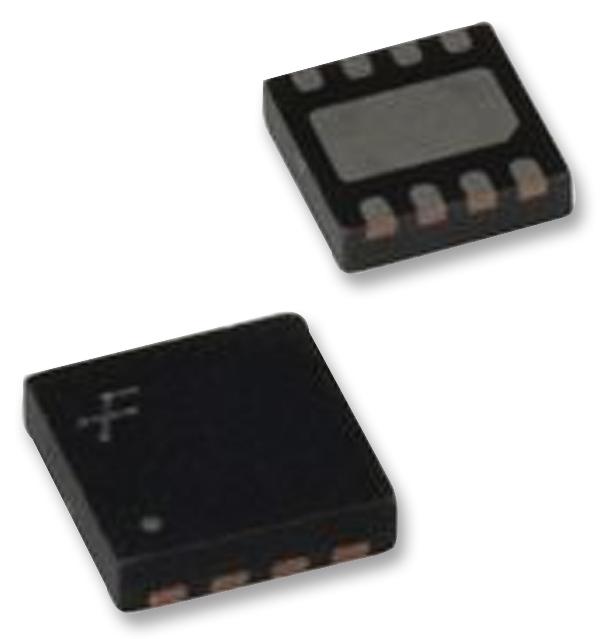

ONSEMI FDMC7692 Power MOSFET
The FDMC7692 is a high-performance N-Channel Power Trench MOSFET designed for efficient power management and load switching in portable devices. Featuring a maximum drain-source voltage of 30 V and a continuous drain current of 13.3 A at 25°C, it offers extremely low on-resistance, making it ideal for notebook power management, DC-DC buck converters, and load switches. Manufactured using advanced Power Trench technology, this device ensures reliable operation across a junction temperature range of -85°C to +150°C. The lead-free, ROHS-compliant package combines high efficiency with environmental responsibility, suitable for demanding electronics applications.
ONSEMI FDMC7692 Power MOSFET Specifications:
- Drain to Source Voltage: 30 V
- Gate to Source Voltage: ±20 V
- Continuous Drain Current at 25°C: 13.3 A
- Pulsed Drain Current: 40 A
- Single Pulse Avalanche Energy: 58 mJ
- Power Dissipation: 29 W
- Thermal Resistance, Junction to Case: 4.3 °C/W
- Thermal Resistance, Junction to Ambient: 53 °C/W
- Operating Temperature Range: -85°C to +150°C
- Gate Threshold Voltage: 1.2 V to 3.0 V
- Rds(on): 8.5 mΩ at Vgs = 10 V, 11.5 mΩ at Vgs = 4.5 V
- Gate Charge: 21-29 nC
- Package: MLP 3.3x3.3, Reel Size: 13 inches, Quantity: 3000 units
Buy the Buy ON Semiconductor FDMC7692 Part Number FDMC7692 Online
Purchase the ON Semiconductor FDMC7692 MOSFET online today and take advantage of its high efficiency, low on-resistance, and robust performance suitable for notebook power management, load switching, and DC-DC conversion applications. Known for its advanced Power Trench technology, this device ensures optimal performance within a wide temperature range, making it ideal for demanding portable electronic products. With lead-free, ROHS-compliant packaging, it aligns with environmental standards. Order now for fast delivery and enhance your power management solutions with this reliable MOSFET.
Buy ON Semiconductor FDMC7692 now and experience unmatched reliability and low Rds(on) for efficient power switching in portable electronics.
Frequently Asked Questions
Where can I buy ONSEMI FDMC7692?
You can click on the BUY or RFQ button to purchase FDMC7692 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMC7692?
You can download the FDMC7692 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMC7692?
ONSEMI
