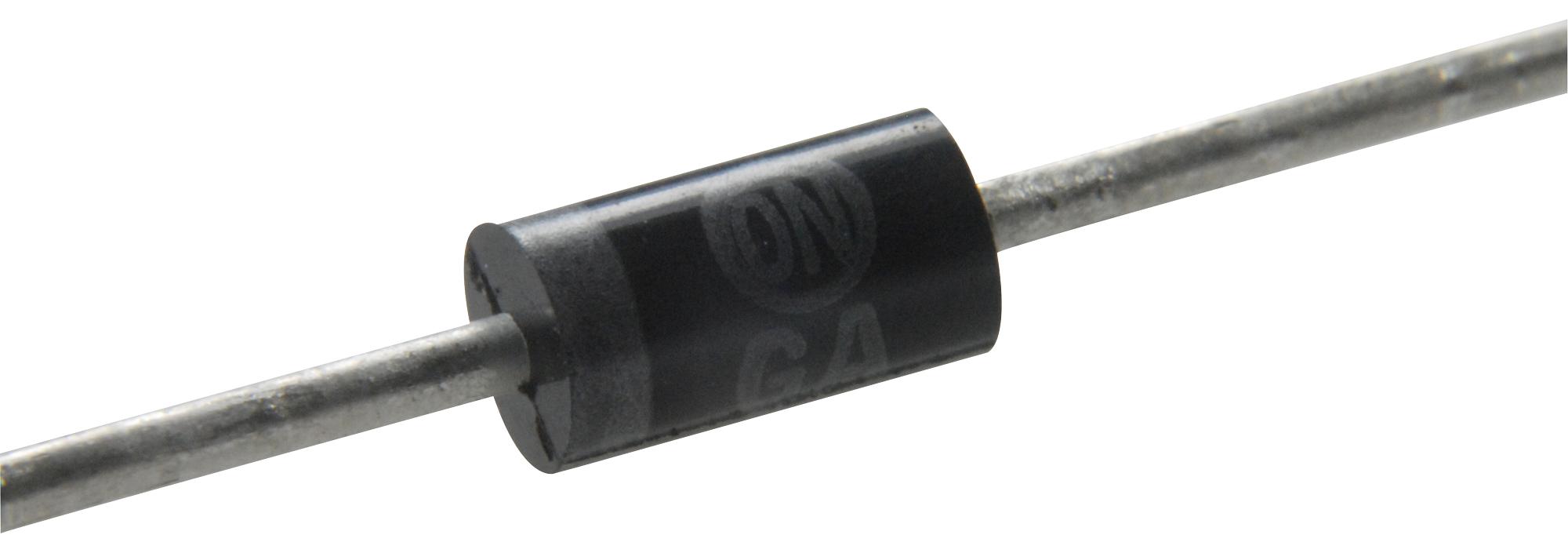

ONSEMI MUR105G Power Rectifier
The MUR120 series comprises ultrafast switching power rectifiers designed for use in switching power supplies, inverters, and freewheeling diode applications. These devices feature low forward voltage and leakage current, with recovery times of 25, 50, and 75 nanoseconds at 175°C. They are available in axial lead packages, with ratings up to 600 V reverse voltage and 1.0 A continuous forward current. Ideal for high-speed rectification, this series is Pb-free, with robust glass-passivated junctions for high-temperature operation and corrosion resistance.
ONSEMI MUR105G Power Rectifier Specifications:
- Peak Repetitive Reverse Voltage: 50-600 V
- Average Rectified Forward Current: 1.0 A at Ta = 120°C
- Recovery Time: 25-75 ns
- Forward Voltage (at 1.0 A, 150°C): 0.710 V to 1.05 V
- Reverse Current (at rated Vp, 150°C): 50-150 μA
- Case: Epoxy, Molded Axial Lead
- Thermal Resistance, Junction-to-Ambient: up to 87°C/W depending on mounting
- Operating Temperature: -55°C to +175°C
- Polarity: Cathode indicated by band, leads are solderable
- Pb-Free, UL and CSA Approved
Buy the ON Semiconductor Series MUR120 Ultrafast Rectifier: MUR120
Buy ON Semiconductor MUR120 ultrafast rectifier now and enhance your power conversion systems. Designed for switching power supplies, inverters, and freewheeling diodes, the MUR120 offers a maximum reverse voltage of 600 V and a continuous forward current of 1.0 A. Featuring low forward voltage, fast recovery times, and a robust epoxy case, it ensures efficient performance and durability. Ideal for high-speed applications requiring rapid switching, this device is Pb-free, UL-listed, and packaged in axial lead form for easy mounting and soldering in various electronic assemblies.
Get ON Semiconductor MUR120 ultrafast rectifier today—built for high-speed switching and long-lasting reliability in power supply circuits.
Frequently Asked Questions
Where can I buy ONSEMI MUR105G?
You can click on the BUY or RFQ button to purchase MUR105G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MUR105G?
You can download the MUR105G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MUR105G?
ONSEMI
