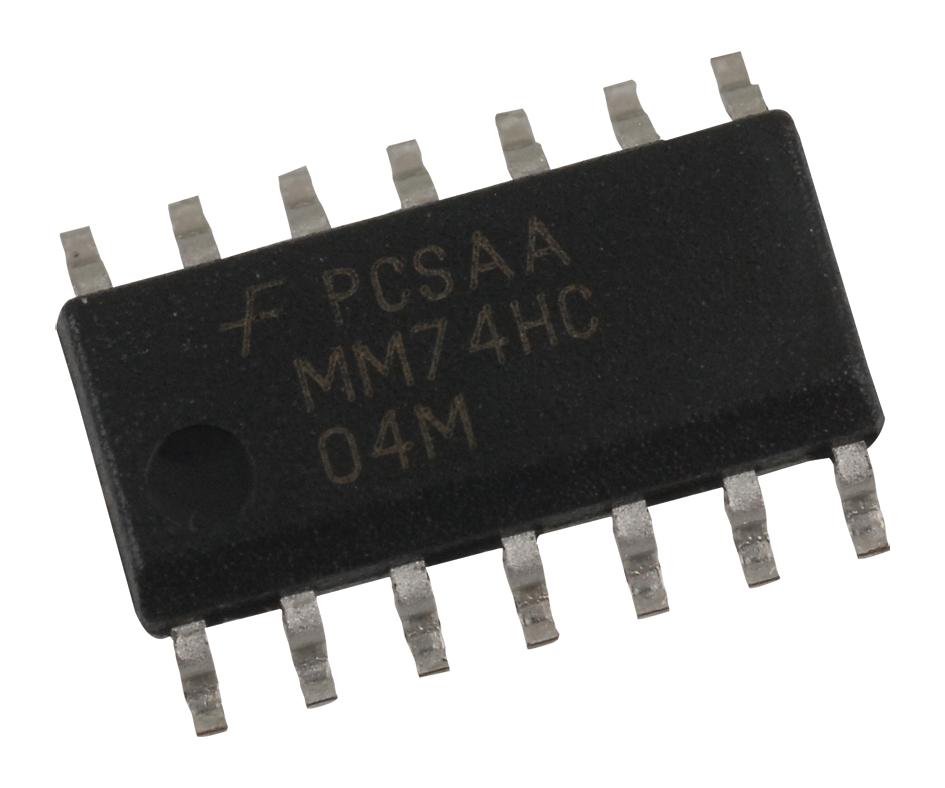

ONSEMI MM74HC04M Hex Inverter IC
The MM74HC04M is a Hex Inverter IC that utilizes advanced silicon-gate CMOS technology to combine high-speed operation comparable to LS-TTL gates with low power consumption typical of standard CMOS devices. It features six inverter gates with high noise immunity and the ability to drive up to 10 LS-TTL loads. The device is pin and functionally compatible with the 74LS logic family, ensuring easy integration into existing systems. All inputs are protected against static discharge damage through internal diode clamps to VCC and ground. Key features include an 8 ns propagation delay, high fan-out, low input current, and minimal power consumption, making it suitable for industrial applications.
ONSEMI MM74HC04M Hex Inverter IC Specifications:
- Propagation delay: 8 ns
- Fan out: 10 LS-TTL loads
- Quiescent power consumption: 10 µW at room temperature
- Input current: 1 µA maximum
- Supply Voltage: 2V to 6V
- Operating Temperature: -40°C to +85°C
- Input Voltage: 0V to VCC
- Output Voltage: VCC to GND
- DC Output Current per pin: ±25 mA
- Storage Temperature Range: -65°C to +150°C
- Power Dissipation: 600 mW (standard package), 500 mW (S.O. package)
- Pin configuration: 14-pin packages including SOIC, SOP, TSSOP, PDIP
- Lead temperature (soldering): 260°C for 10 seconds
- Compliance: RoHS, lead-free packages
Buy the ON Semiconductor Series 74HC Series Hex Inverter: MM74HC04M
Purchase the ON Semiconductor MM74HC04M now through our online store and enjoy fast, secure delivery of this high-speed hex inverter. Ideal for industrial systems, it offers low power consumption, excellent noise immunity, and compatibility with LS-TTL loads. Enhance your projects with this robust and reliable device designed for high-performance digital logic applications. Order today to ensure your supply chain remains uninterrupted and benefit from our dedicated customer support for technical assistance and fast shipping.
Buy ON Semiconductor MM74HC04M now and experience unmatched reliability and performance with high-speed CMOS hex inverter gates suitable for industrial automation.
Frequently Asked Questions
Where can I buy ONSEMI MM74HC04M?
You can click on the BUY or RFQ button to purchase MM74HC04M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MM74HC04M?
You can download the MM74HC04M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MM74HC04M?
ONSEMI
