ONSEMI FDMS8333L PowerTransistor
The FDMS8333L is a high-performance N-Channel PowerTrench MOSFET designed for improved efficiency in power switching applications. It features a maximum drain-source voltage of 40V and a continuous drain current of 76A, with low gate charge and optimized for fast switching speeds. Its advanced package and silicon technology deliver low Rds(on) and excellent reverse recovery performance, making it ideal for DC-DC converters, load switching, and synchronous rectification. Built to RoHS standards, this robust MOSFET ensures reliable operation in demanding electronic systems.
ONSEMI FDMS8333L PowerTransistor Specifications:
- Drain-Source Voltage: 40 V
- Continuous Drain Current: 76 A
- Pulsed Drain Current: 250 A
- Gate to Source Voltage: ±20 V
- Maximum Power Dissipation: 69 W
- Junction Operating Temperature: -55°C to +150°C
- Thermal Resistance Junction to Case: 1.8 °C/W
- Thermal Resistance Junction to Ambient: 50 °C/W
- Gate Charge: 46-64 nC
- On Resistance (at Vgs = 10 V): 3.6-4.7 mΩ

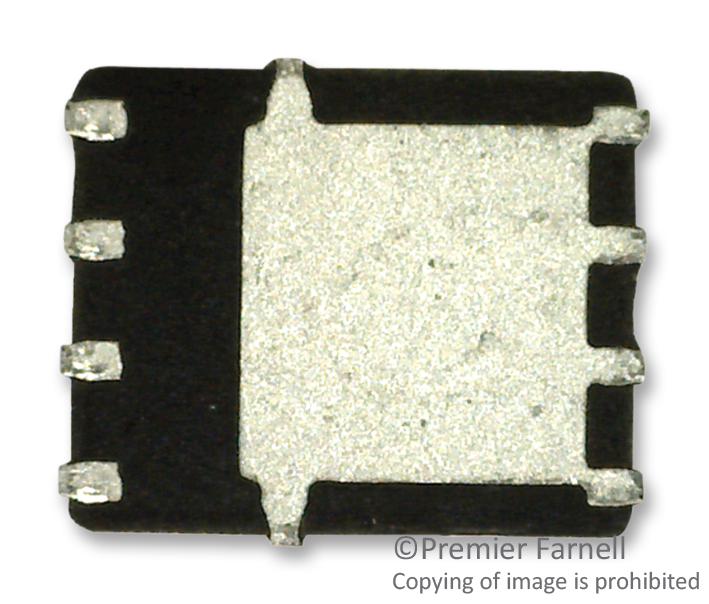

Buy the Fairchild Series PowerTrench N-Channel MOSFET: FDMS8333L
Experience the reliability and efficiency of the FDMS8333L N-Channel MOSFET, designed for high-current power switching in demanding electronic applications. With a voltage rating of 40V and a continuous drain current of 76A, this MOSFET provides low Rds(on) and fast switching capabilities for power supplies, DC-DC converters, and load switching systems. Its advanced silicon technology ensures minimal losses, while its robust package guarantees durability. Perfect for engineers seeking high performance, this component is available for purchase online for hassle-free integration into your projects.
Get Fairchild FDMS8333L today—built for high current capacity and low ON-resistance for efficient power switching.
Frequently Asked Questions
Where can I buy ONSEMI FDMS8333L?
You can click on the BUY or RFQ button to purchase FDMS8333L from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDMS8333L?
You can download the FDMS8333L datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDMS8333L?
ONSEMI
