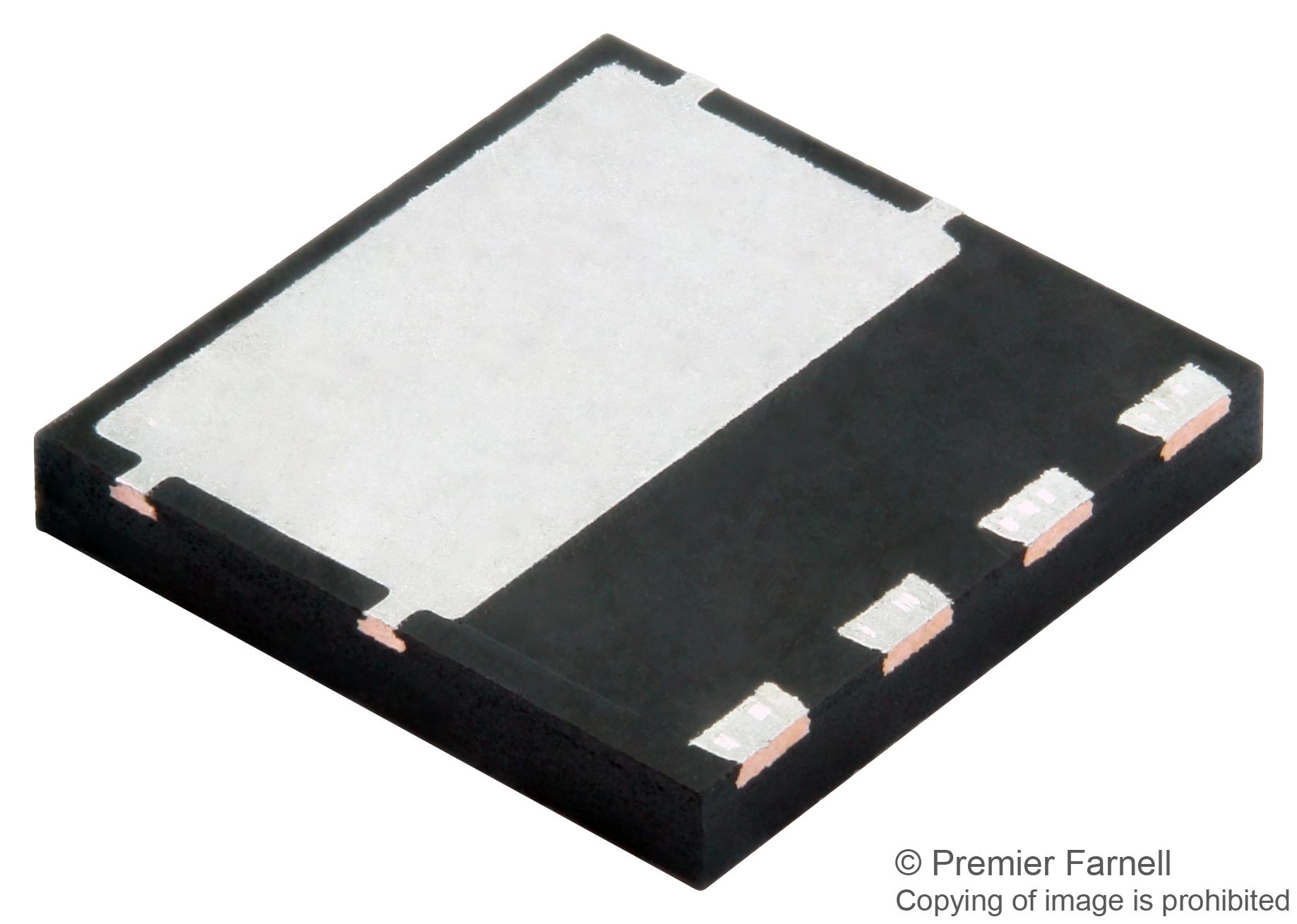

ONSEMI FFSM1065B Silicon Carbide Schottky Diode
Silicon Carbide Schottky Diodes provide superior switching performance and reliability compared to traditional Silicon diodes. Featuring no reverse recovery current and temperature independent switching, these diodes maximize system efficiency, enable faster operation, and reduce EMI and system size. Rated at 650V and 10A, they are ideal for power switching, SMPS, solar inverters, and UPS applications. With excellent thermal performance, high surge capacity, and compliance with environmental standards, they are a reliable choice for high-performance power electronics.
ONSEMI FFSM1065B Silicon Carbide Schottky Diode Specifications:
- Maximum Junction Temperature: 175°C
- Avalanche Rated: 49 mJ
- Peak Repetitive Reverse Voltage: 650 V
- Continuous Rectified Forward Current: 10 A
- Non-Repetitive Peak Forward Surge Current: 532 A at 25°C, 468 A at 150°C
- Forward Voltage: 1.38–1.7 V at 10A, 25°C
- Reverse Current: 0.05–2.16 mA depending on temperature and voltage
- Total Capacitance: 35–424 pF at 100 kHz and varying voltages
- Power Dissipation: Up to 98 W at 25°C
- Thermal Resistance, Junction-to-Case: 1.53 °C/W
- Operating Temperature Range: -55°C to +175°C
- Package: PQFN 8x8, 2P (Case 483AP), Halogen Free
- Environmental Compliance: Pb-Free, Halogen Free, ROHS Compliant
Buy the onsemi Series Silicon Carbide Schottky Diode: FFSM1065B
Purchase onsemi FFSM1065B Silicon Carbide Schottky Diode online today to benefit from high voltage, high current capabilities, and exceptional thermal performance. Designed for power switching, SMPS, solar inverters, and UPS systems, this diode ensures maximum efficiency with no reverse recovery current and temperature independent switching. Compact PQFN package, robust surge capacity, and compliance with environmental standards make it excellent for demanding industrial applications. Order now to enhance your power electronics projects with reliable, high-performance components delivered swiftly to your door.
Get onsemi FFSM1065B today—built for high efficiency power switching and thermal reliability in demanding applications.
Frequently Asked Questions
Where can I buy ONSEMI FFSM1065B?
You can click on the BUY or RFQ button to purchase FFSM1065B from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FFSM1065B?
You can download the FFSM1065B datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FFSM1065B?
ONSEMI
