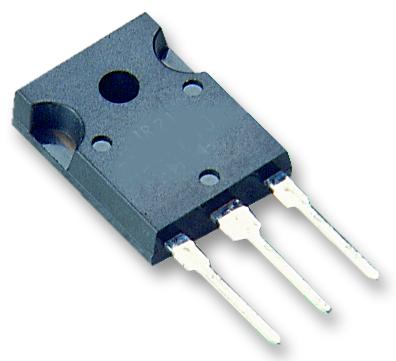

ONSEMI NTHL040N120SC1 High-Voltage Power MOSFET
The NTHLO40N120SC1 is a 1200V N-channel SiC power MOSFET designed for high-efficiency switching applications. It features a low Rds(on) of approximately 40 mΩ, ultra-low gate charge of 106 nC, and low output capacitance of 140 pF, ensuring fast switching and minimal energy loss. Suitable for use in UPS, DC/DC converters, and boost inverters, it is RoHS compliant, 100% UL tested, and operates over a temperature range of -55°C to +175°C. Its lead dimensions conform to industry standards, making it ideal for high-voltage, high-current power management circuits.
ONSEMI NTHL040N120SC1 High-Voltage Power MOSFET Specifications:
- Drain-to-Source Voltage: 1200 V
- Gate-to-Source Voltage: -15/+25 V
- Recommended Operation Gate Voltage: -5/+20 V
- Continuous Drain Current at 25°C: 60 A
- Power Dissipation at 25°C: 348 W
- Continuous Drain Current at 100°C: 42 A
- Power Dissipation at 100°C: 174 W
- Pulsed Drain Current: 240 A
- Single Pulse Surge Capability: 416 A
- Maximum Junction Temperature: -55°C to +175°C
- Source Current (Body Diode): 34 A
- Avalanche Energy: 613 mJ
- Junction-to-Case Thermal Resistance: 0.43°C/W
- Junction-to-Ambient Thermal Resistance: 40°C/W
- Package: TO-247-3LD, Case 340CX
- Meets RoHS standards and UL certification
- Capacitance (Ciss): 1781 pF, (Coss): 140 pF, (Crss): 12 pF
- Gate Charge (Qg): 106 nC, (Qas): 34 nC, (Qep): 26 nC
- Gate Resistance: 2.2 Ω
- Turn-On Delay Time: 18 ns
- Turn-Off Delay Time: 33 ns
- Switching Loss: 1003 W, Switch Off Loss: 247 W
