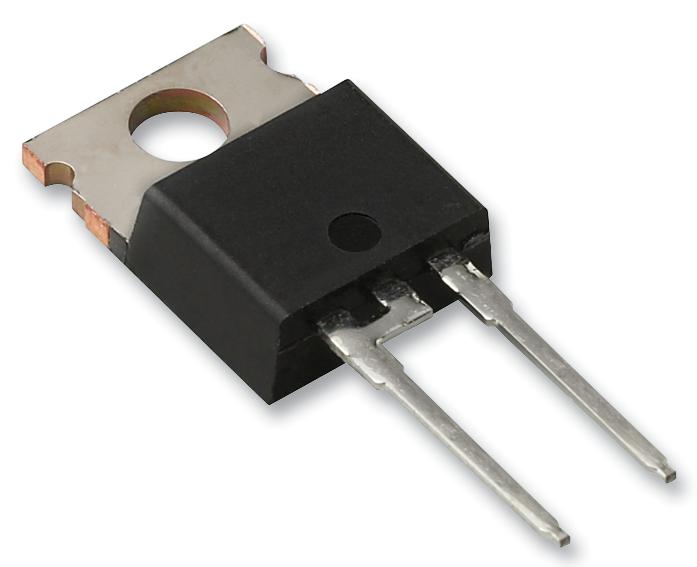

ONSEMI FFSP05120A Silicon Carbide Diode
Silicon Carbide Schottky Diode offering superior switching performance, high efficiency, and thermal reliability. Rated for 1200 V and 5 A, it features no reverse recovery, high surge current capacity, and easy paralleling, making it ideal for power switching, SMPS, solar inverters, and UPS systems. Its excellent thermal characteristics and avalanche rating ensure durability across operating temperatures up to 175°C. Compact and efficient, this diode enhances power density and reduces electromagnetic interference, supporting high-frequency, high-reliability power applications.
ONSEMI FFSP05120A Silicon Carbide Diode Specifications:
- Maximum Junction Temperature: 175 °C
- Avalanche Rated: 55 mJ
- Peak Repetitive Reverse Voltage: 1200 V
- Single Pulse Avalanche Energy: 55 mJ
- Continuous Forward Current at Tc < 160°C: 5 A
- Forward Current at Tc < 135°C: 9.2 A
- Peak Forward Surge Current: 380 A (10us, at 25°C)
- Power Dissipation at 25°C: 94 W
- Power Dissipation at 150°C: 16 W
- Operating and Storage Temperature Range: -55°C to +175°C
- Thermal Resistance, Junction to Case: 16°C/W
Buy the ON Semiconductor Series FFSP Silicon Carbide Diode: FFSP05120A
Purchase the ON Semiconductor Series FFSP05120A silicon carbide diode online today. Designed for high-voltage, high-current applications, it offers exceptional switching performance with no reverse recovery. With a 1200 V reverse voltage and 5 A current rating, this diode ensures reliable, efficient operation in power supplies, solar inverters, and UPS systems. Its thermal resilience and avalanche rating provide durability across extreme temperatures, making it the ideal choice for demanding industrial power circuits. Order now to enhance your system’s efficiency and reliability with this advanced power diode.
Order your ON Semiconductor Series FFSP05120A silicon carbide diode today and enjoy high efficiency, excellent thermal performance, and robust power switching capabilities.
Frequently Asked Questions
Where can I buy ONSEMI FFSP05120A?
You can click on the BUY or RFQ button to purchase FFSP05120A from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FFSP05120A?
You can download the FFSP05120A datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FFSP05120A?
ONSEMI
