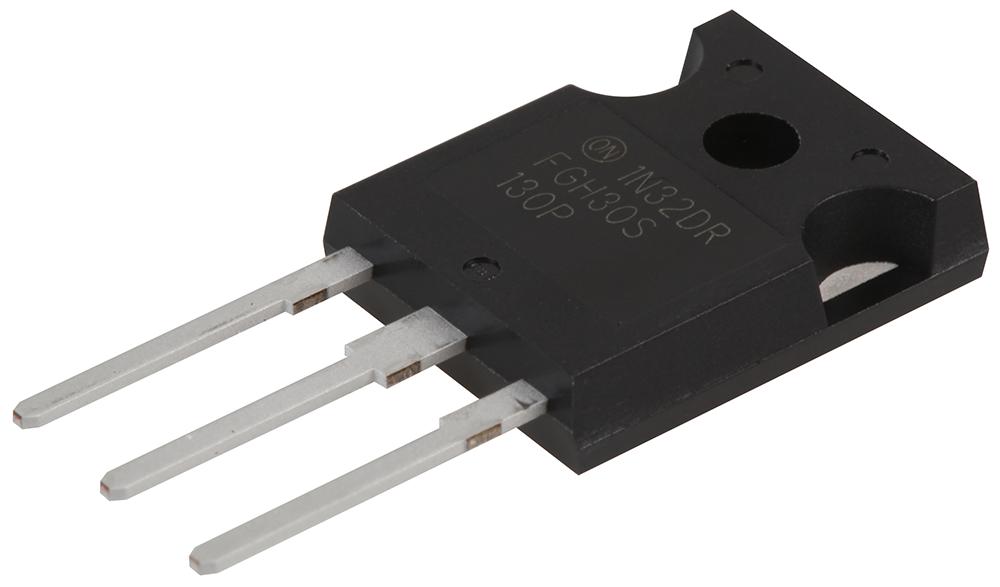

ONSEMI FGH30S130P High Power IGBT Module
The FGH30S130P is a high-performance 1300V, 30A shorted-anode trench IGBT designed for soft switching applications like induction heating and microwave ovens. Utilizing advanced field stop trench and shorted-anode technology, it offers excellent conduction and switching performance, high-speed switching, low saturation voltage of 1.75V at 30A, high input impedance, and RoHS compliance. Suitable for parallel operation with exceptional avalanche capability, it ensures reliable operation in demanding electrical environments, making it ideal for industrial heating and high-power switching systems.
ONSEMI FGH30S130P High Power IGBT Module Specifications:
- Collector to Emitter Voltage: 1300 V
- Gate to Emitter Voltage: ±25 V
- Collector Current at 25°C: 60 A
- Collector Current at 100°C: 30 A
- Pulsed Collector Current: 90 A
- Diode Forward Current: 60 A at 26°C, 30 A at 100°C
- Maximum Power Dissipation: 500 W at 26°C, 250 W at 100°C
- Operating Junction Temperature: -55°C to +175°C
- Storage Temperature Range: -55°C to +175°C
- Maximum Lead Soldering Temp.: 300°C for 5 seconds
- Thermal Resistance Junction to Case: 0.3°C/W
- Thermal Resistance Junction to Ambient: 40°C/W
- Switching Delay Times: Turn-On delay 39 ns, Turn-Off delay 620 ns
- Capacitances: Input 3345 pF, Output 75 pF, Reverse Transfer 60 pF
