ONSEMI J113D74Z N-channel switch
The J113D74Z is an N-channel switch designed for low-level analog switching, sample and hold circuits, and chopper stabilized amplifiers. It features interchangeable source and drain terminals and is sourced from process 51. Suitable for applications requiring reliable analog switching, it is available in a TO-92 package with various packing options including bulk, tape and reel, and ammo. This device ensures efficient performance with maximum junction temperatures up to 150°C, providing stable operation in various electronic and industrial applications.
ONSEMI J113D74Z N-channel switch Specifications:
- Drain-Gate Voltage: 35 V
- Gate-Source Voltage: -35 V
- Forward Gate Current: 50 mA
- Operating Temperature Range: -55°C to 150°C
- Total Device Dissipation: 625 mW
- Thermal Resistance, Junction-to-Case: 125°C/W
- Thermal Resistance, Junction-to-Ambient: 200°C/W
- Gate-Source Breakdown Voltage: -1.0 to -10.0 V
- Gate-Source Cut-Off Voltage: -1.0 to -5.0 V
- Drain Cutoff Leakage Current: 1.0 nA
- Drain Current at Vgs=0: 2.0 mA
- On Resistance (Vgs < 0.1 V): 100 Ω
- Capacitance (Drain-Gate, Source-Gate): 5.0 pF
- Power Dissipation: 625 mW (Total), Derate 5.0 mW/°C
- Maximum Junction Temperature: 150°C

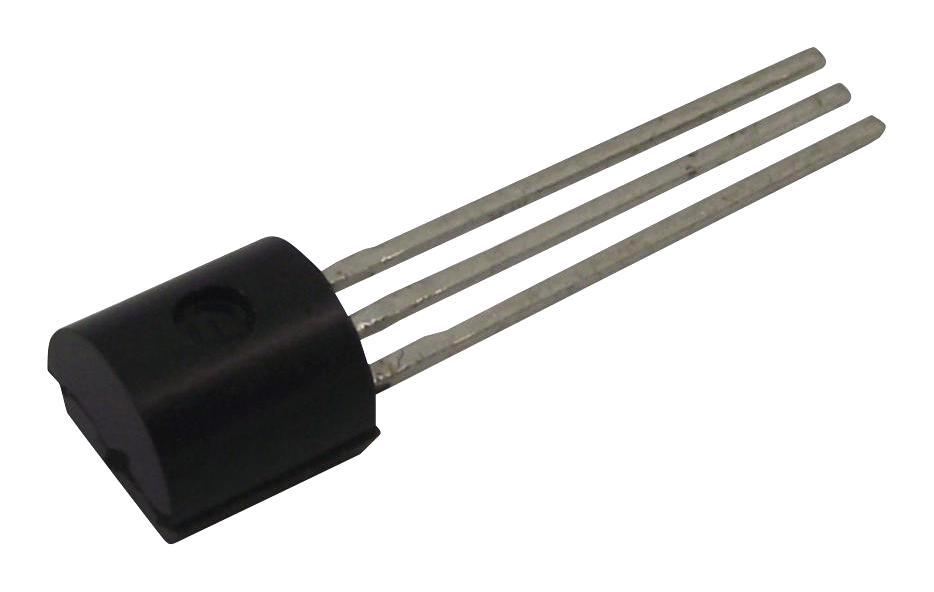

Buy the Buy Fairchild J113D74Z Part Number J113D74Z Online
Purchase the Fairchild J113D74Z online today to ensure your projects benefit from high-quality, reliable analog switching performance. This N-channel switch is ideal for low-level analog signal applications, offering interchangeable source and drain terminals for flexible circuit design. Available in a TO-92 package, it includes various packing options like bulk, tape and reel, and ammo for convenience. Its operational stability at high temperatures up to 150°C and low leakage current make it perfect for industrial and high-precision electronics, providing durable, efficient switching in your systems.
Buy Fairchild J113D74Z now and experience unmatched reliability and performance in low-voltage analog switching applications.
Frequently Asked Questions
Where can I buy ONSEMI J113D74Z?
You can click on the BUY or RFQ button to purchase J113D74Z from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part J113D74Z?
You can download the J113D74Z datasheet or visit the ONSEMI website for support.
Who is the manufacturer of J113D74Z?
ONSEMI
