ONSEMI FOD8482TR2 Optoisolated Power Driver
The FOD8482TR2 is an optically isolated, intelligent power module driver in a stretched body SOP 6-pin package. It supports isolated digital communication between controllers and Intelligent Power Modules (IPMs), ensuring safety by eliminating ground loops and hazardous voltages. Featuring aluminum gallium arsenide LEDs and high gain detectors with hysteresis, it provides differential noise immunity. Designed for industrial environments, it operates over -40°C to 100°C, with a wide 4.5 V to 30 V voltage range, making it compatible with TTL, LSTTL, and CMOS logic, and offers reliable high voltage insulation and low power consumption.
ONSEMI FOD8482TR2 Optoisolated Power Driver Specifications:
- Insulation Voltage: 5,000 VACRMS for 1 min
- Isolation Resistance: 10^9 Ω at 500 V
- Isolation Capacitance: 1.0 pF at 1.0 MHz
- Maximum Input Threshold Current: 3.0 mA (FOD8482)
- Input to Output Test Voltage: 1,824 Vpeak (VIORM*1.6)
- Operating Temperature Range: -40°C to 100°C
- Supply Voltage Range: 4.5 V to 30 V
- Maximum Reverse Input Voltage: 5.0 V
- Input Power Dissipation: 35 mW
- Output Power Dissipation: 300 mW
- Junction Temperature: -40°C to 125°C
- Reflow Solder Profile: Max 260°C for 10 sec
- Package: SOP 6-pin, Tape and Reel, Wide Lead options available

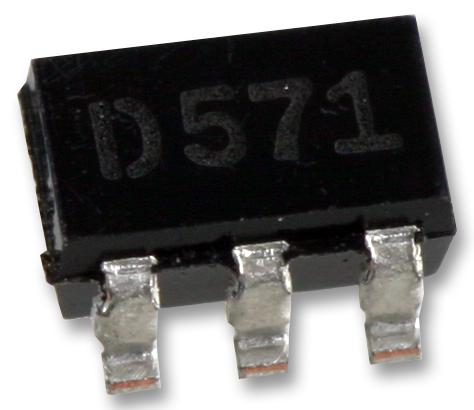

Buy the ON Semiconductor Series FOD Series FOD8482: Power Module Driver in SOP 6-Pin
Secure your industrial power management with the ON Semiconductor FOD8482TR2, an optically isolated power module driver in a robust SOP 6-pin package. Designed for high voltage insulation and low power consumption, it operates reliably over -40°C to 100°C. Compatible with TTL, LSTTL, and CMOS logic, this device offers excellent noise immunity and safety features with 5,000 VACRMS isolation voltage. Ideal for controlling Intelligent Power Modules and industrial communication interfaces, buy online now for seamless integration and dependable performance.
Buy ON Semiconductor FOD8482TR2 now and experience unmatched reliability and performance in optocoupler isolation for industrial power control.
Frequently Asked Questions
Where can I buy ONSEMI FOD8482TR2?
You can click on the BUY or RFQ button to purchase FOD8482TR2 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FOD8482TR2?
You can download the FOD8482TR2 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FOD8482TR2?
ONSEMI
