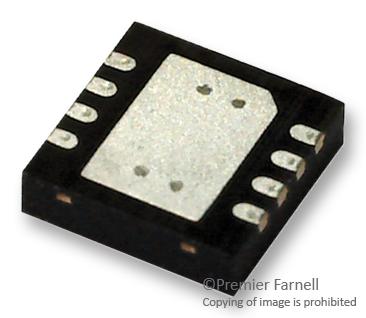

ONSEMI NCP4306AAAZZZAMN1TBG Synchronous Rectification Driver
The NCP4306 is a high-performance synchronous rectification driver suitable for various switch mode power supplies, including flyback, forward, and LLC topologies. It features precise turn-off thresholds, low delay times, and high sink current capability, optimizing efficiency at full and light loads. The device includes adjustable minimum on-time and off-time blanking, self-synchronization, and Light Load Detection to reduce power consumption during light or no load conditions. Its wide voltage operating range from 4.0 to 35 V makes it versatile for different applications such as notebook adapters, LCD TVs, and high-efficiency power supplies.
ONSEMI NCP4306AAAZZZAMN1TBG Synchronous Rectification Driver Specifications:
- Supply Voltage Range: 4.0 to 35 V
- Maximum Junction Temperature: 150°C
- Output Voltage Rise Time: 0 to 90% at 60 to 100 ns
- Output Voltage Fall Time: 25 to 45 ns
- Driver Source Resistance: 0.5 Ω
- Driver Sink Resistance: 0.5 Ω
- Maximum Driver Pulse Length: 4 ms
- Trigger Delay: 10 to 130 ns (adjustable)
- Minimum On-Time: 55 to 1700 ns (adjustable with external resistors)
- Minimum Off-Time: 70 to 2000 ns (adjustable with external resistors)
- Light Load Detection Time: 68 to 1075 μs
- ESD Protection: Human Body Model 2000 V, Machine Model 200 V
- Power Dissipation in driver: Calculated based on gate capacitance and switching frequency
- Operating Temperature Range: -40°C to 125°C
- Package Options: TSOP6, SOIC8, DFN8 4x4, DFN8 2x2.2
- Low Standby Current Consumption
