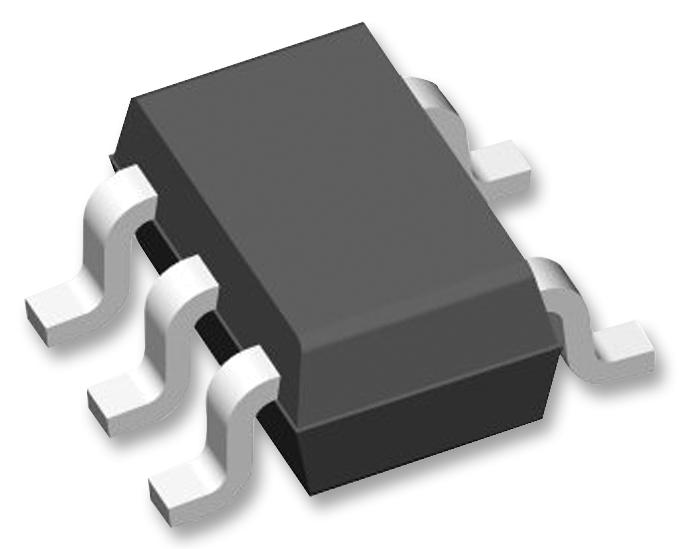

ONSEMI MC74VHC1G01DFT1G high-speed NAND gate
The MC74VHC1G01 is a high-speed, low-power 2-input NAND gate with open drain output, designed for operation between 2.0 V and 5.5 V. It features voltage-tolerant inputs and outputs, protecting against voltage mismatches up to 5.5 V. The device supports partial power-down protection, with source/sink current of 8 mA at 3 V. Available in compact packages like SC-88A, SC-74A, TSOP-5, SOT-553, and UDFN6, it’s suitable for automotive, industrial, and consumer electronics requiring robust interface capabilities and high reliability in varied environmental conditions.
ONSEMI MC74VHC1G01DFT1G high-speed NAND gate Specifications:
- Designed for 2.0 V to 5.5 V Vcc operation
- Supports partial power-down protection
- Open drain output with source/sink 8 mA at 3.0 V
- Input/output voltage tolerances: up to 5.5 V
- Input thresholds CMOS or TTL levels depending on version
- Supports voltages from 0 V to 5.5 V on inputs and outputs
- Low power consumption with maximum power dissipation of 327 mW in UDFN6 package
- Thermal resistance: 382°C/W in UDFN6, 659°C/W in SC-88A
- Available in various packages: SC-88A, SC-74A, TSOP-5, SOT-553, UDFN6
- AEC-Q100 qualified, Pb-Free and RoHS compliant
- Maximum junction temperature +150°C
- Storage temperature range -65°C to +150°C
- ESD withstand voltage: 2000 V (Human Body Model)
