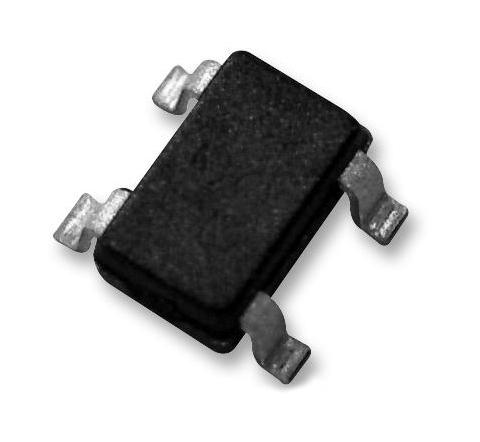

ONSEMI FODM1007 High-Voltage Optocoupler
The FODM1007 optocoupler is a single-channel, DC sensing device featuring a GaAs infrared LED and phototransistor in a stretched SOP 4-pin package. It provides high input-output isolation voltage of 5,000 VACRms, with creepage and clearance distances exceeding 8 mm for reliable high-voltage safety. Suitable for DC-DC converters, ground loop and noise isolation, communication, consumer appliances, and industrial power supplies, it supports operating temperatures from -40°C to 110°C. This Pb-Free device complies with UL1577 and IEC60747-5-5 standards, ensuring safe electrical insulation and high voltage breakdown performance.
ONSEMI FODM1007 High-Voltage Optocoupler Specifications:
- Isolation Voltage: 5,000 VACRms
- Package: SOP 4-pin, stretched body
- Creepage & Clearance: >8 mm, 0.4 mm insulation distance
- Working Voltage: 890 VPeak (IEC)
- Breakdown Voltage: BVcgo = 70 V
- Temperature Range: -40°C to 110°C
- Input-Output Isolation Voltage: 5,000 VACRms
- Input Current: 5 mA typical for CTR ratings
- Maximum Input Voltage: 6 V reverse in LED
- Collector-Emitter Voltage: 70 V
- Emitter-Collector Voltage: 7 V
- Pb-Free, UL1577, IEC60747-5-5 certified
- Power Dissipation: 100 mW (LED), 150 mW (detector)
- Operating Temperature: -40°C to 110°C
- Insulation Resistance: >10^9 Ω at 500 V
Buy the Buy ON Semiconductor FODM1007 Part Number FODM1007 Online
Purchase the ON Semiconductor FODM1007 optocoupler online now to benefit from its reliable high-voltage isolation, compact SOP 4-pin package, and extended temperature range. Designed for industrial, medical, and communication applications, it provides safety with 5,000 VACRms isolation voltage and complies with UL1577 and IEC standards. With a CTR of up to 400% and robust insulation, this Pb-Free device is ideal for ground loop and noise isolation, power supplies, and motor control systems. Get yours today for dependable, safe electrical insulation in demanding environments.
Order your ON Semiconductor FODM1007 optocoupler today and ensure high-voltage safety for industrial and communication projects.
Frequently Asked Questions
Where can I buy ONSEMI FODM1007?
You can click on the BUY or RFQ button to purchase FODM1007 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FODM1007?
You can download the FODM1007 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FODM1007?
ONSEMI
