ONSEMI FQPF22P10 Power MOSFET
The FQPF22P10 is a P-Channel enhancement mode power MOSFET designed for switch mode power supplies, motor control, and audio amplification. It features a maximum drain-source voltage of -100 V and a continuous drain current of -13.2 A. The device offers low gate charge of 40 nC, low on-resistance of 0.125 Ω, and is 100% avalanche tested, ensuring high reliability. Operating up to 175°C junction temperature, it provides superior switching performance and energy efficiency. Its construction uses proprietary DMOS technology for reduced resistance and high avalanche energy strength, suitable for demanding power applications.
ONSEMI FQPF22P10 Power MOSFET Specifications:
- Drain-Source Voltage: -100 V
- Drain Current (Continuous, Tc=25°C): -13.2 A
- Drain Current (Pulsed): -52.8 A
- Gate-Source Voltage: ±30 V
- Single Pulsed Avalanche Energy: 710 mJ
- Repetitive Avalanche Energy: 45 mJ
- Peak Diode Recovery dV/dt: 6.0 V/ns
- Power Dissipation: 45 W at 25°C
- Operating and Storage Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Case: 33 °C/W
- Thermal Resistance Junction-to-Ambient: 62.5 °C/W

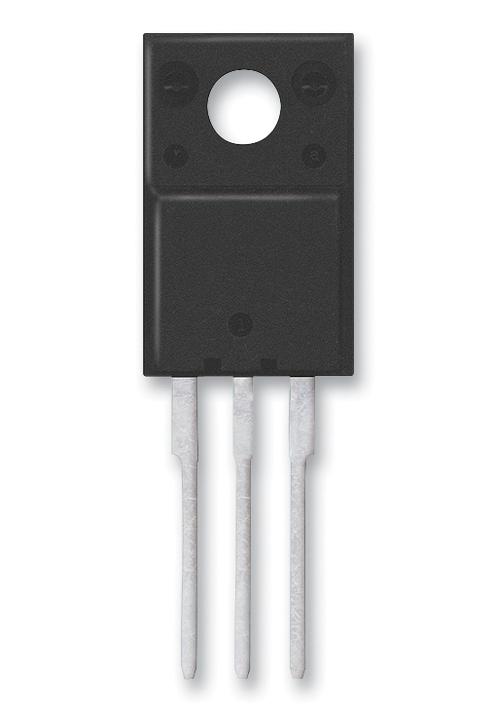

Buy the Fairchild Series FQPF22P10 MOSFET: -100 V -13.2 A P-Channel PowerTransistor
Experience superior power switching with the Fairchild Series FQPF22P10 Power MOSFET. Featuring a -100 V drain-source voltage, -13.2 A continuous drain current, low gate charge of 40 nC, and avalanche testing, this device ensures high reliability in power supplies, motor control, and audio amplifiers. Its advanced DMOS technology reduces on-resistance, improves switching efficiency, and withstands high avalanche energy. Ideal for demanding industrial applications, this MOSFET improves energy efficiency and operational stability in your electronic designs, available for quick purchase online.
Order your Fairchild Series FQPF22P10 power MOSFET today and give your electronic projects the dependable switching performance they deserve.
Frequently Asked Questions
Where can I buy ONSEMI FQPF22P10?
You can click on the BUY or RFQ button to purchase FQPF22P10 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FQPF22P10?
You can download the FQPF22P10 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FQPF22P10?
ONSEMI
