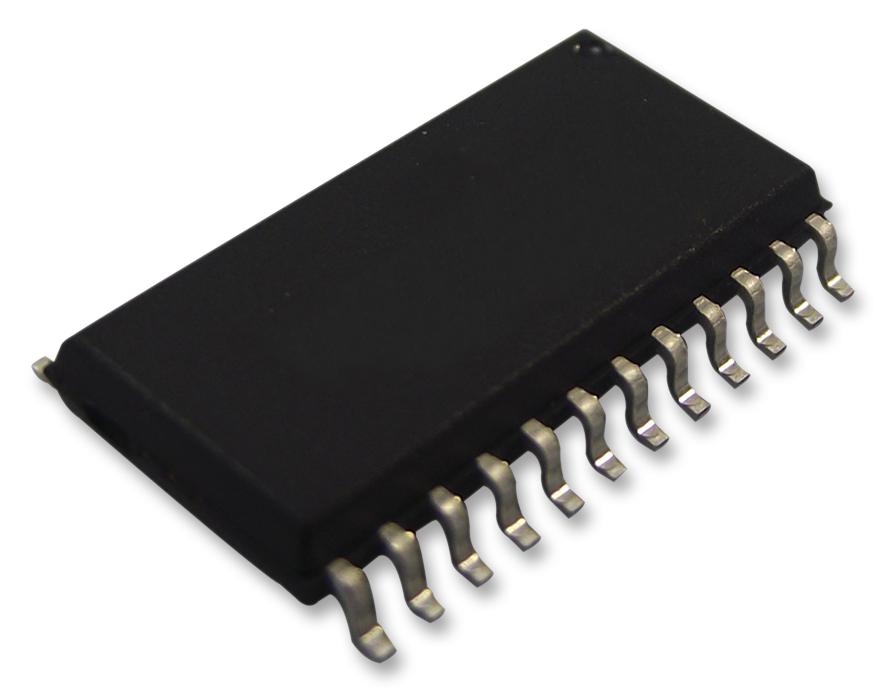

ONSEMI MC74LVXC3245DWRG Octal Voltage Interface Transceiver
The 74LVXC3245 is a 24-pin dual-supply, octal configurable voltage interface transceiver designed for PCMCIA and real-time configurable I/O applications. Suitable for low power notebook designs, it features a flexible Vccp operating range, bidirectional data interface, and independent voltage domains for the A and B ports, which can track supply levels at 3.0 V or 5.0 V. The device supports high drive outputs up to 24 mA, control inputs compatible with TTL levels, and is available in SOIC and TSSOP packages. Designed for robust electrical performance and compliance with RoHS standards, it ensures reliable data exchange in portable systems.
ONSEMI MC74LVXC3245DWRG Octal Voltage Interface Transceiver Specifications:
- Package Options: SOIC-24 and TSSOP-24
- Supply Voltage Vcc: 3.0 V to 5.5 V
- Input Voltage Range: 0 V to Vcc
- Output Drive Current: Up to 24 mA source/sink
- Input Voltage Compatibility: TTL levels
- Propagation Delay: 1.0 to 9.0 ns (typical 1.0 to 7.0 ns)
- Output Enable/Disable Time: 1.0 to 10.0 ns
- Power Dissipation Capacitance: 50 pF
- Maximum Ratings: Vcc up to 7 V, operating temperature range -40°C to +85°C
- RoHS Compliant, Pb-Free
- Storage Temperature Range: -65°C to +150°C
Buy the ON Semiconductor Series 3245 Octal Transceiver: MC74LVXC3245DWRG
Purchase the ON Semiconductor Series 3245 MC74LVXC3245D online today and enhance your low power, high drive interface applications. Ideal for PCMCIA cards and portable systems, this bidirectional transceiver offers flexible voltage levels, supports operating voltages from 3.0 V to 5.5 V, and features high-speed propagation delay, robust electrical characteristics, and RoHS compliance. Its compact SOIC and TSSOP packages facilitate easy integration into your designs while ensuring long-term reliability. Secure your supply of this essential component now for cutting-edge electronics projects.
Order your ON Semiconductor Series 3245 MC74LVXC3245D today and give your projects the dependable quality they deserve, ensuring reliable data transfer across voltage domains.
Frequently Asked Questions
Where can I buy ONSEMI MC74LVXC3245DWRG?
You can click on the BUY or RFQ button to purchase MC74LVXC3245DWRG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74LVXC3245DWRG?
You can download the MC74LVXC3245DWRG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74LVXC3245DWRG?
ONSEMI
