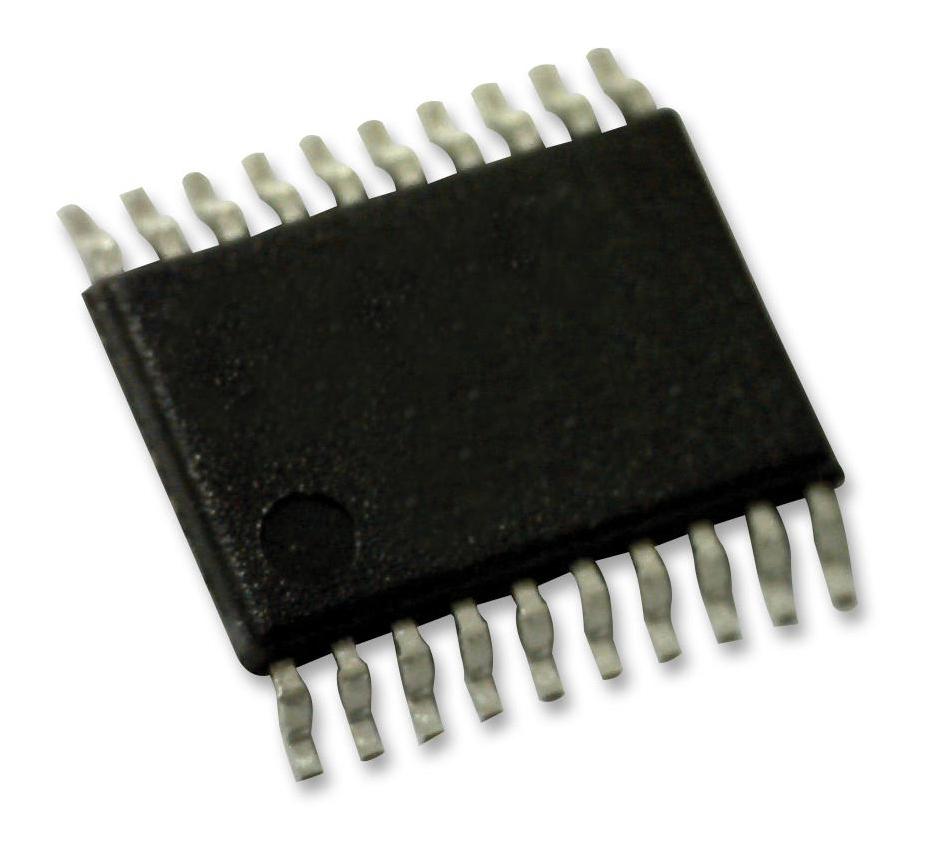

ONSEMI FST3245MTCX Bus Switch
The FST3245 provides an 8-bit high-speed CMOS TTL-compatible bus switch, enabling quick connection between two ports with minimal delay. When /OE is LOW, the switch connects port A to port B without adding propagation delay or noise. In a high-impedance state when /OE is HIGH, it prevents signal flow. Designed for high-speed digital applications, the switch features low on-resistance, TTL compatibility, and a compact 20-lead TSSOP package, making it ideal for modern electronic systems requiring efficient data bus routing.
ONSEMI FST3245MTCX Bus Switch Specifications:
- Supply Voltage (Vcc): 4.0V to 5.5V
- Input Voltage (Vin): 0V to 5.5V
- Output Voltage (Vout): 0V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Package: 20-Lead TSSOP, JEDEC MO-153, 4.4 mm wide
- Propagation Delay (tPLH, tPHL): 0.25 ns typical
- Output Enable Time (tOE): 6.4 ns maximum
- Switch On Resistance (Ron): 8 to 20 ohms
- Input Capacitance (Cin): 3 pF
- Output Capacitance (Cio): 5 pF
- Maximum DC Switch Voltage: 7.0V
- Storage Temperature Range: -65°C to +150°C
Buy the Fairchild Series FST Series Bus Switch: FST3245
Secure your digital system’s efficiency by purchasing the Fairchild FST3245 high-speed 8-bit bus switch online today. With TTL-compatible inputs, low on-resistance, and fast propagation delay, this switch is perfect for rapid data routing in sophisticated electronic applications. Its compact 20-lead TSSOP package ensures easy integration into your circuit designs while maintaining excellent signal integrity. Trust in Fairchild’s quality and optimize your system performance with a reliable, high-speed bus switch designed for modern tech requirements. Order now and enhance your electronics’ speed and efficiency.
Buy Fairchild FST3245 now and experience unmatched reliability and performance with high-speed data switching in a compact package.
Frequently Asked Questions
Where can I buy ONSEMI FST3245MTCX?
You can click on the BUY or RFQ button to purchase FST3245MTCX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FST3245MTCX?
You can download the FST3245MTCX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FST3245MTCX?
ONSEMI
