ONSEMI FIN1108MTD High-Speed LVDS Repeater
The FIN1108MTD is an 8-port high-speed repeater designed for interconnect applications using low voltage differential signaling (LVDS). It accepts and outputs LVDS signals with a typical differential output swing of 330mV, enabling low electromagnetic interference (EMI) and ultra-low power consumption at high frequencies. The device provides a VBB reference for AC coupling on inputs and can directly accept LVPECL, HSTL, and SSTL-2 signals for translation to LVDS. Features include a wide rail-to-rail common mode range, low jitter (3.5ps random and 135ps deterministic), minimal channel-to-channel skew (20ps), power-off protection, open circuit failsafe, internal termination resistors, and VBB output exceeding the reference. It is suitable for motor drive and control applications.
ONSEMI FIN1108MTD High-Speed LVDS Repeater Specifications:
- Number of Ports: 8
- Differential Output Swing: 330mV
- Jitter: 3.5ps maximum random, 135ps maximum deterministic
- Channel-to-Channel Skew: 20ps
- Power Supply Voltage: 3.0V to 3.6V
- Operating Temperature Range: -40°C to +85°C
- Input Voltage: LVDS DC input range -0.5V to +4.6V
- Output Voltage: LVDS DC output range -0.5V to +46V
- ESD Protection: 7.5kV HBM

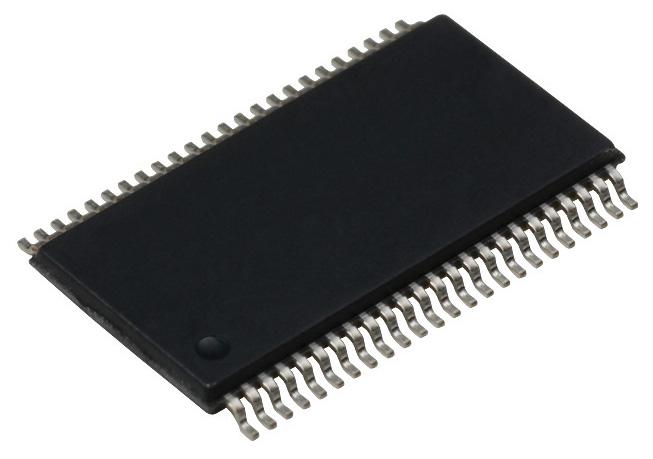

- Package: 48-Lead TSSOP (JEDEC MO-153)
- Max Frequency: over 630 MHz
- Fault Protection: Open-circuit failsafe, short-circuit current 10mA
- Voltage Reference Output: VBB
- Output Drivers: Inverting and non-inverting buffer outputs
- Input Types: LVPECL, HSTL, SSTL-2
- Absolute Max Supply Voltage: 46V
- Storage Temp: -65°C to +150°C
Buy the Buy ON Semiconductor FIN1108MTD Part Number FIN1108MTD Online
Purchase the ON Semiconductor FIN1108MTD online today to ensure high-speed data transmission with ultra-low jitter, robust protection, and versatility in interconnect solutions. Designed for demanding applications, it supports multiple standards like LVPECL, HSTL, SSTL-2, and provides a VBB reference for AC coupling. Its low power consumption, channel-to-channel skew of only 20ps, and high-frequency operation over 630 MHz make it ideal for motor drives, industrial automation, and high-speed communication systems. Secure reliable, fast delivery and technical support for this advanced repeater.
Get ON Semiconductor FIN1108MTD today—built for high-speed data integrity, low jitter, and reliable motor control applications.
Frequently Asked Questions
Where can I buy ONSEMI FIN1108MTD?
You can click on the BUY or RFQ button to purchase FIN1108MTD from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FIN1108MTD?
You can download the FIN1108MTD datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FIN1108MTD?
ONSEMI
