ONSEMI FXLA0104QFX Voltage Translator
The FXLA0104 is a configurable dual-voltage supply translator designed for both unidirectional and bidirectional voltage translation between levels from 1.1 V to 3.6 V. It supports auto direction sensing, eliminating the need for a direction pin, and operates with fully configurable inputs and outputs that track Vcc levels. Its features include three-state outputs, power-off protection, bus-hold on data inputs, and high-speed throughput up to 100 Mbps. Packaged in a compact 12-lead UMLP, it is ideal for portable devices like cell phones, cameras, and GPS units, offering low power consumption and robust ESD protection.
ONSEMI FXLA0104QFX Voltage Translator Specifications:
- Vcc Operating Range: 1.1 V to 3.6 V
- Input Voltage: 0 to Vcc
- Output Voltage: 0 to Vcc
- Supports bidirectional translation between 1.1 V and 3.6 V levels
- Package: 12-Lead UMLP (1.7 mm x 2.0 mm)
- Propagation Delay (A to B): 45-69 ns depending on voltages
- Maximum Data Rate: Up to 100 Mbps
- ESD Protection: >6 kV HBM, >2 kV CDM
- Power Dissipation: 17 mW
- Storage Temperature Range: -65°C to +150°C
- Operating Temperature Range: -40°C to +85°C
- Power-up/Power-down sequence supports either Vcc powered first
- Power-off outputs go to high-impedance state at Vcc=0V
- Bus-hold on inputs prevents need for pull-up resistors
- Supports static, dynamic, and low-power modes
- Supports auto direction sensing without external control

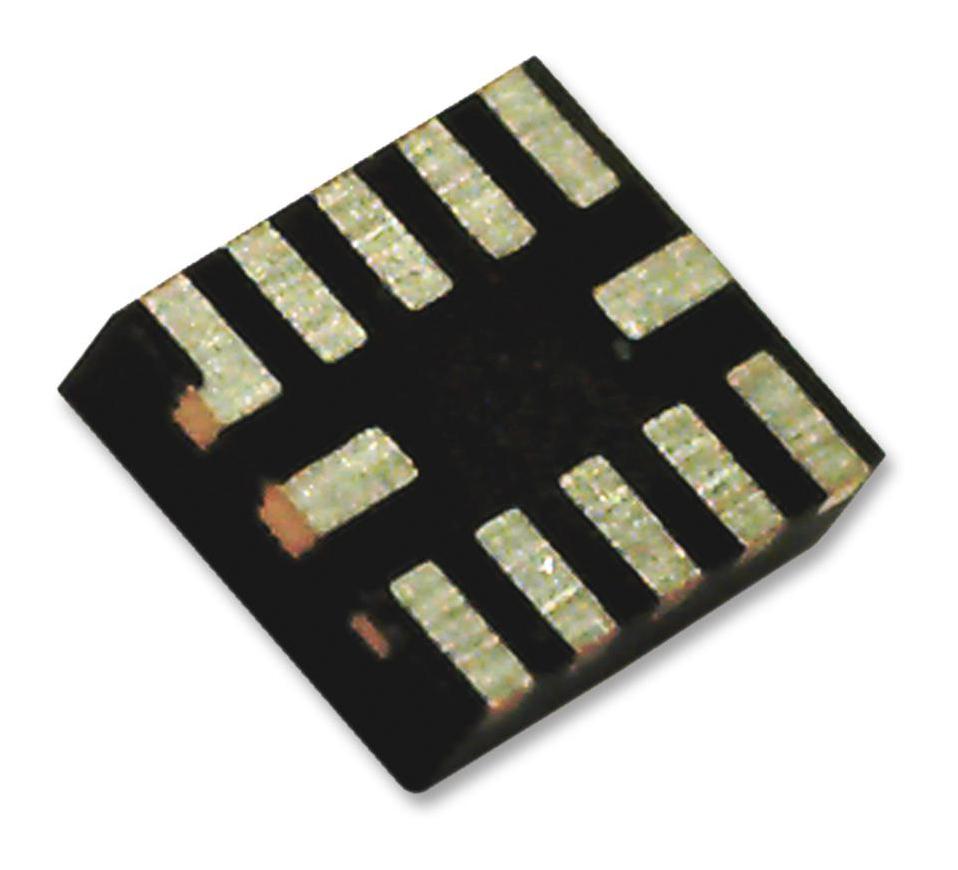

Buy the onsemi Series FXLA Low-Voltage Dual-Supply Voltage Translator: FXLA0104QFX
Enhance your electronic designs with the onsemi FXLA0104QFX voltage translator. This innovative device offers bidirectional translation between 1.1 V and 3.6 V, supporting high-speed data transfer up to 100 Mbps. Its auto direction sensing, three-state outputs, and built-in power-off protection make it ideal for portable, low-power applications such as smartphones, digital cameras, and GPS devices. Compact in a 12-lead UMLP package, it ensures reliable performance, easy integration, and robust ESD protection. Order online today to improve your circuit efficiency and signal integrity.
Get onsemi FXLA0104QFX today—built for precision bidirectional voltage translation in portable and high-speed electronic devices.
Frequently Asked Questions
Where can I buy ONSEMI FXLA0104QFX?
You can click on the BUY or RFQ button to purchase FXLA0104QFX from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FXLA0104QFX?
You can download the FXLA0104QFX datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FXLA0104QFX?
ONSEMI
