ONSEMI US1JFA Surface Mount Rectifier
Super fast surface mount rectifiers with glass passivated chip junction, high surge capacity, low power loss, and fast switching reverse recovery time of 50-75 ns. These SOD-123FA package devices are RoHS compliant, industrial qualified per AEC-Q101 standards, UL flammability rated 94-0, and feature reliable thermal characteristics with a thermal resistance of 153°C/W junction-to-ambient. Ideal for high-efficiency power applications, they support VRDC Blocking voltages up to 1000V, RMS reverse voltages up to 700V, and have typical forward voltages around 0.95-1.70V at 1A.
ONSEMI US1JFA Surface Mount Rectifier Specifications:
- Package: SOD-123FA
- Surge Capacity: 30 A single half sine-wave
- Maximum Reverse Voltage: 50V to 1000V depending on part number
- RMS Reverse Voltage: 35V to 700V depending on part number
- Forward Voltage: 0.95V to 1.70V at 1A
- Maximum Forward Surge Current: 8.3 ms, 30A
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: Junction-to-Ambient 153°C/W
- Flammability: UL 94V-0
- RoHS Compliant: Yes
- Qualification: Industry standard, AEC-Q101
- Capacitance: Approximately 15-20 pF at 1MHz
- Recovery Time: 50-75 ns maximum
- Wave Solder Compatibility: Yes

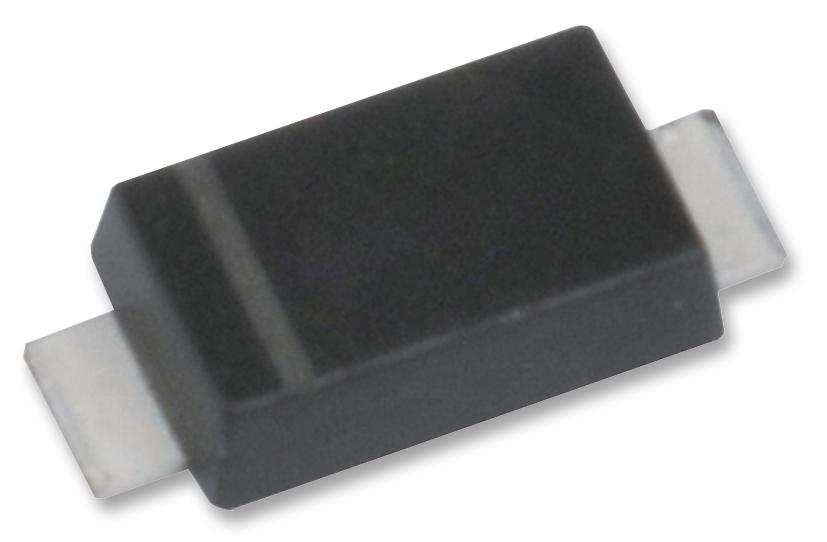

Buy the Fairchild Series Super Fast Rectifiers: US1JFA
Purchase the Fairchild US1JFA surface mount rectifier online today to experience fast switching, high surge capacity, and excellent reliability. Designed for efficient power conversion, this device boasts a SOD-123FA package, industry compliance, and a reverse recovery time of 50-75 ns. It supports high voltages up to 1000V, low forward voltage, and is ideal for industrial and power supply applications. Order now to ensure high-performance rectification with durable, RoHS-compliant design, and quick delivery for your engineering needs.
Get Fairchild US1JFA today—built for high surge capacity, fast switching, and reliable power rectification.
Frequently Asked Questions
Where can I buy ONSEMI US1JFA?
You can click on the BUY or RFQ button to purchase US1JFA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part US1JFA?
You can download the US1JFA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of US1JFA?
ONSEMI
