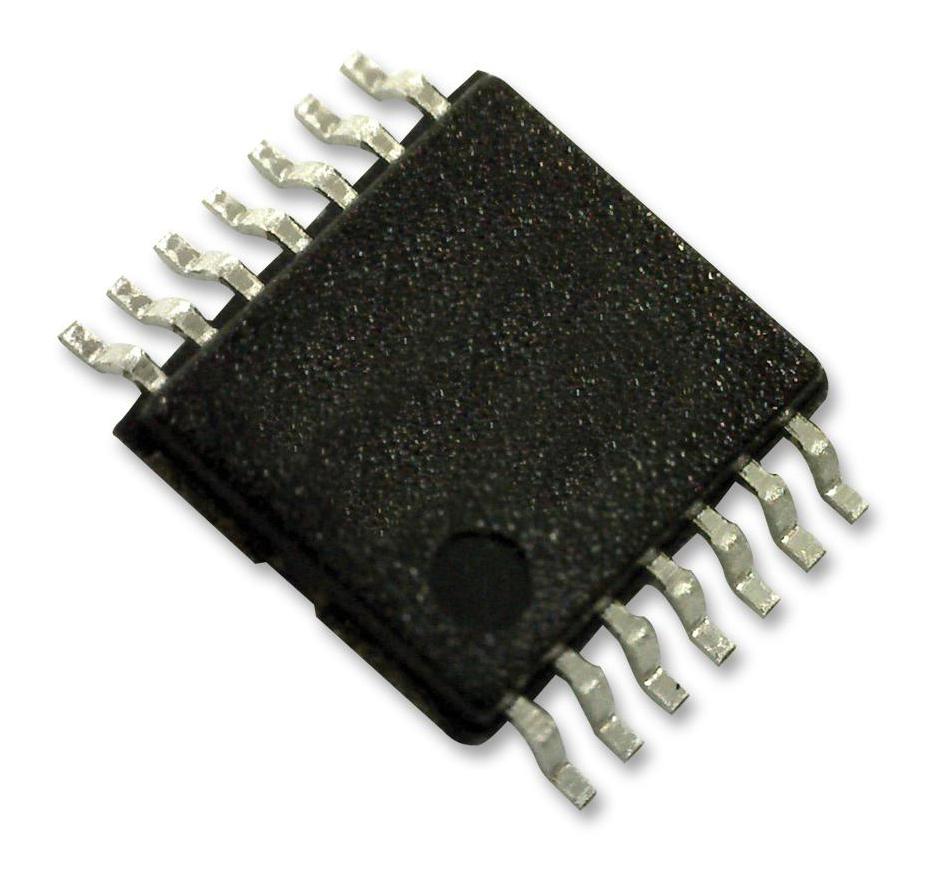

ONSEMI 74AC04MTC Hex Inverter Logic Gate
The ONSEMI 74AC04MTC is a 14-pin TSSOP package containing six inverters. These inverters provide a convenient way to implement logic inversion in digital circuits. The device features TTL-compatible inputs and can source or sink 24mA, making it suitable for driving a wide range of loads. It's commonly used in digital logic circuits, signal processing, and other applications requiring logic inversion. The device is lead-free and operates within a wide temperature range, ensuring reliable performance in diverse environments.
ONSEMI 74AC04MTC Hex Inverter Logic Gate Specifications:
- Supply Voltage (VCC): –0.5V to +7.0V
- DC Input Diode Current: –20mA to +20mA
- DC Input Voltage: –0.5V to VCC + 0.5V
- DC Output Diode Current: –20mA to +20mA
- DC Output Voltage: –0.5V to VCC + 0.5V
- DC Output Source or Sink Current: ±50mA
- DC VCC or Ground Current: ±50mA
- Storage Temperature: –65°C to +150°C
- Junction Temperature: 140°C
- Recommended Operating Conditions VCC (AC): 2.0V to 6.0V
- Recommended Operating Conditions VCC (ACT): 4.5V to 5.5V
- Minimum HIGH Level Input Voltage: 1.5V to 3.15V (at 3.3V VCC)
- Maximum LOW Level Input Voltage: 0.9V to 1.65V (at 3.3V VCC)
- Minimum HIGH Level Output Voltage: 2.9V
- Maximum LOW Level Output Voltage: 0.1V
- Minimum Dynamic Output Current: 75mA
- Maximum Input Leakage Current: ±0.1µA
- Maximum Quiescent Supply Current: 20.0µA (at 5.5V VCC)
