ONSEMI GBU6K bridge rectifier
This high-reliability bridge rectifier is designed for efficient power conversion in electronic systems. Featuring glass-passivated junctions, surge overload rating of 175 A, and UL certification, it ensures durability and safety. The package is suitable for printed circuit board mounting, offering excellent thermal performance and low-cost construction through molded plastic techniques. Operating within -55°C to +150°C, it supports maximum ratings of 1000 V DC reverse voltage and 70 A RMS bridge input voltage. Ideal for industrial and electronic applications requiring robust and reliable rectification components.
ONSEMI GBU6K bridge rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 50V to 1000V
- Maximum RMS Bridge Input Voltage: 35V to 700V
- Average Rectified Forward Current: 6.0 A at 25°C
- Non-Repetitive Peak Forward Surge Current: 175 A
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Power Dissipation: 12 W
- Thermal Resistance Junction to Ambient: 18.6°C/W
- Thermal Resistance Junction to Lead: 34°C/W
- Forward Voltage at 60A: 1.0V
- Reverse Current at Rated Voltage (25°C): 5.0 μA; at 125°C: 500 μA
- Case Type: SIP4, Package Dimensions: 22.05x18.55 mm

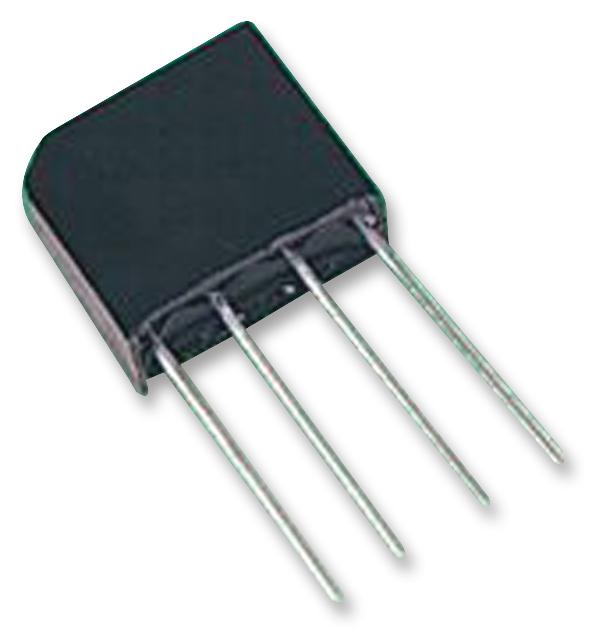

Buy the Buy ON Semiconductor Bridge Rectifier Part Number GBU6K Online
Purchase the ON Semiconductor GBU6K bridge rectifier online today for reliable power conversion. With surge overload rating of 175 A, glass-passivated junctions, UL certification, and package suitable for PCB mounting, this component ensures efficient operation and safety for industrial and electronic projects. Its high thermal performance and robust design make it perfect for demanding applications requiring durable and high-capacity rectification. Enjoy fast delivery and excellent support when you buy this trusted rectifier online now.
Get ON Semiconductor GBU6K today—built for high current handling and long-lasting reliability in power conversion applications.
Frequently Asked Questions
Where can I buy ONSEMI GBU6K?
You can click on the BUY or RFQ button to purchase GBU6K from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part GBU6K?
You can download the GBU6K datasheet or visit the ONSEMI website for support.
Who is the manufacturer of GBU6K?
ONSEMI
