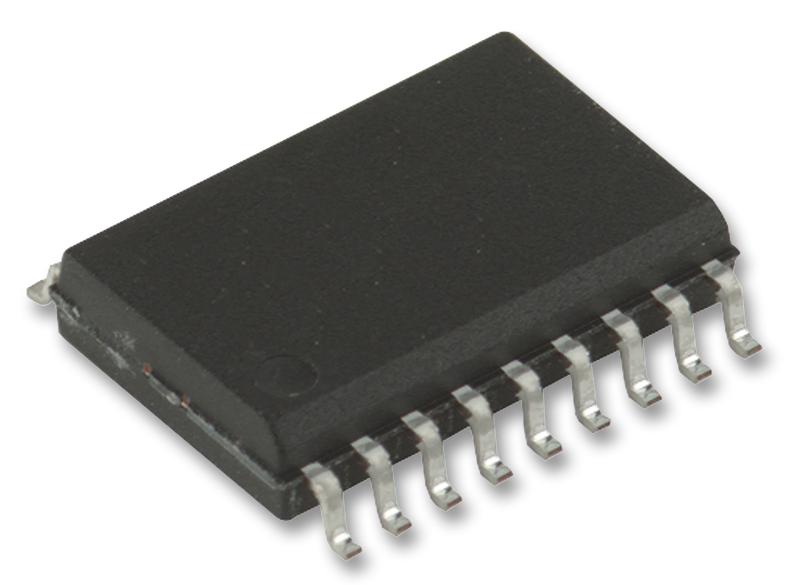

ONSEMI MC74HCT541ADWR2G Octal Buffer Line Driver
The MC74HCT541A is an octal non-inverting buffer and line driver designed for high-performance applications. It features TTL-compatible inputs and can interface directly with CMOS, NMOS, and TTL devices. Operating from 4.5V to 5.5V, it provides an output drive capability of 15 LSTTL loads. Suitable for use in memory address drivers, clock drivers, and bus systems, this device includes active-low output enables, ensuring reliable data transfer with minimal power consumption and high-speed operation. It is available in SOIC-20, TSSOP-20 packages, and adheres to industry standards for durability and performance.
ONSEMI MC74HCT541ADWR2G Octal Buffer Line Driver Specifications:
- Operating Voltage Range: 4.5 to 5.5 V
- Output Drive Capability: 15 LSTTL Loads
- Inputs: TTL/NMOS-Compatible Logic Levels
- Outputs: Directly Interface to CMOS, NMOS, and TTL
- Maximum DC Supply Voltage: 7.0 V
- Maximum DC Input Voltage: 0.5 to +7.0 V
- Maximum DC Output Voltage: 0.5 to +7.0 V
- Input Rise/Fall Time: 0 to 500 ns
- Maximum Propagation Delay: 23-32 ns (depending on temperature)
- Max Input Capacitance: 10 pF
- Max 3-State Output Capacitance: 15 pF
- Power Dissipation: 500 mW at room temperature
- Storage Temperature Range: -65°C to +150°C
- Package Types: SOIC-20, TSSOP-20
- Lead Temperature (10 sec): 260°C
- RoHS compliant and Pb-Free
Buy the ON Semiconductor MC74HCT541A – Reliable Octal Buffer for Industrial Applications
Secure your MC74HCT541A octal buffer online today and benefit from fast delivery and industry-leading quality. Ideal for high-speed data applications, this buffer ensures reliable, low-power operation with TTL-compatible inputs and robust industry-standard packages such as SOIC-20 and TSSOP-20. Whether designing memory systems, clock drivers, or bus interfaces, this device provides optimal performance, active-low enables, and industry compliance, making it an essential component for demanding electronic projects and manufacturing needs.
Order your ON Semiconductor MC74HCT541A octal buffer today and enhance your high-speed data transfer systems with dependable performance and industry-standard packaging.
Frequently Asked Questions
Where can I buy ONSEMI MC74HCT541ADWR2G?
You can click on the BUY or RFQ button to purchase MC74HCT541ADWR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC74HCT541ADWR2G?
You can download the MC74HCT541ADWR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC74HCT541ADWR2G?
ONSEMI
