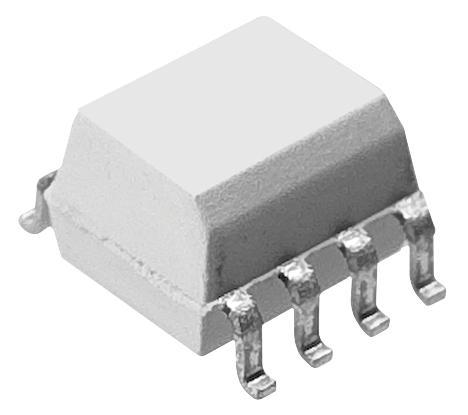

ONSEMI HCPL0601R2 High-Speed Optocoupler
The HCPL0601R2 is a single-channel, 8-pin optocoupler designed for high-speed digital signal isolation. It features an Gallium Aluminum Arsenide (GaAlAs) LED optically coupled to a high-speed integrated logic gate with a strobable open-collector output, allowing for wired OR configurations. The device is built with bipolar transistors on a bipolar process to reduce power consumption and guarantees performance over temperatures ranging from -40°C to +85°C. An internal noise shield provides excellent common-mode noise rejection. Suitable for ground loop elimination, line receivers, data transmission, and multiplexing, with a data rate of 10 Mbps.
ONSEMI HCPL0601R2 High-Speed Optocoupler Specifications:
- Package Type: 8-pin SO8 small outline package
- Maximum Data Rate: 10 Mbps
- Operating Temperature Range: -40°C to +85°C
- Input Forward Voltage: 1.75 V at 10 mA
- Input Reverse Voltage: 5.0 V
- Output Voltage: up to 7.0 V
- Power Dissipation (per channel): 45 mW
- Collector Power Dissipation: 85 mW
- Propagation Delay: 20–75 ns
- Rise Time: 50 ns
- Fall Time: 12 ns
- Noise Shield: Internal noise reduction
- Common-Mode Transient Immunity: 10,000 Vμs (HCPLO601)
- Isolation Voltage: 3750 V (withstand voltage)
- Compatible with TTL, CMOS logic, data multiplexing, switch-mode power supplies, and line receiver applications
