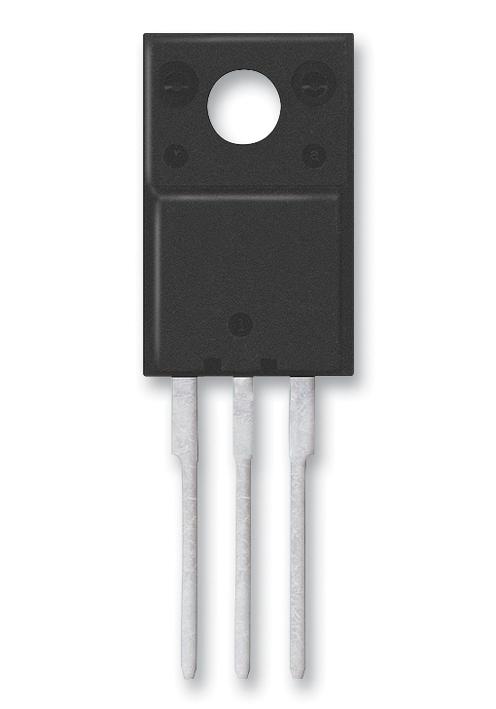

ONSEMI FCPF260N60E Power MOSFET
The FCPF260N60E is a high-voltage N-channel SuperFET II power MOSFET designed for demanding power switching applications such as LED, LCD, PDP TV lighting, and solar inverters. It features a drain-source voltage of up to 600 V, low on-resistance of 0.022 Ω, and a gate charge of 48 nC, providing efficient switching performance. This device is avalanche tested, incorporates an integrated gate resistor, and complies with RoHS standards, ensuring reliability and compliance in complex electronic systems.
ONSEMI FCPF260N60E Power MOSFET Specifications:
- Drain to Source Voltage: 600 V
- Continuous Drain Current: 15 A at 25°C
- Peak Pulsed Avalanche Energy: 292.5 mJ
- Gate to Source Voltage: ±20 V
- Gate Charge: 48 nC at 10 V
- Static Drain to Source On Resistance: 0.022 Ω (Typ.)
- Thermal Resistance, Junction to Ambient: 62.5 °C/W
- Operating Temperature Range: -55°C to +150°C
- Maximum Power Dissipation: 5.3 W at 25°C
- Maximum Lead Soldering Temperature: 300°C for 5 seconds
- RoHS Compliant
- Package: TO-220F with optional support pin hole
- Includes integrated gate resistor, avalanche tested, designed for high efficiency power switching applications
Buy the Fairchild Series SuperFET II MOSFET: FCPF260N60E
Purchase the Fairchild FCPF260N60E high-voltage power MOSFET online today. Designed for efficient switching in power supplies, inverters, and lighting. This device features a drain-source voltage of 600 V, low on-resistance, and high avalanche energy with avalanche testing for added reliability. Its integrated gate resistor makes it easier to implement in your circuit, ensuring optimal performance and minimal EMI. Order now for rapid delivery and technical support to meet your project's power and efficiency needs.
Get Fairchild FCPF260N60E today—built for high voltage power switching and reliable performance in demanding applications.
Frequently Asked Questions
Where can I buy ONSEMI FCPF260N60E?
You can click on the BUY or RFQ button to purchase FCPF260N60E from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FCPF260N60E?
You can download the FCPF260N60E datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FCPF260N60E?
ONSEMI
