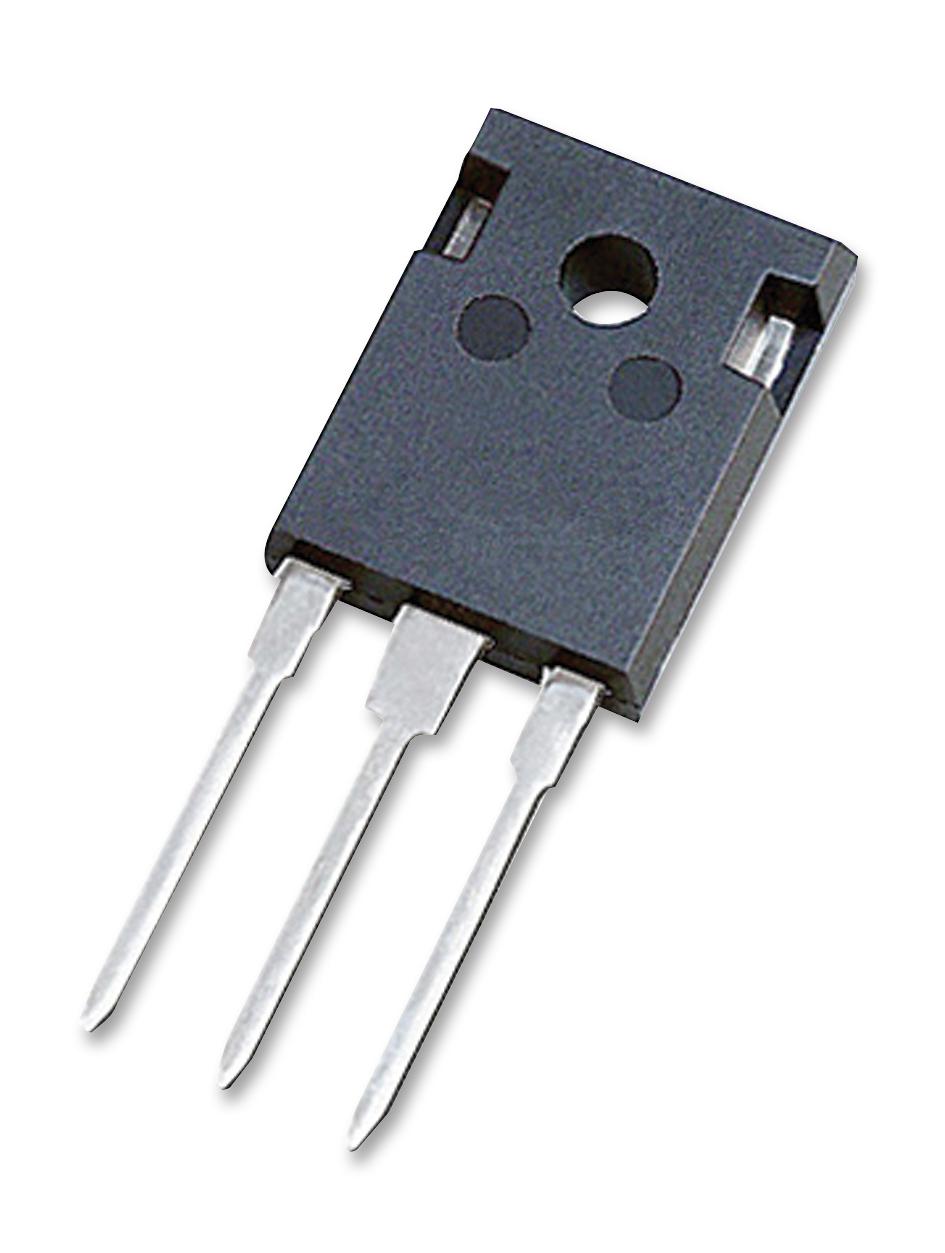

ONSEMI HUF75344G3 High-Performance Power MOSFET
The HUF75344G3 and HUF75344P3 are N-Channel UltraFET Power MOSFETs designed for high-efficiency switching applications. Manufactured using advanced UltraFET process technology, these MOSFETs offer the lowest possible on-resistance for compact power management solutions. They are capable of handling high avalanche energy, making them ideal for switching regulators, motor drivers, and portable battery-powered devices. Their low Rds(on), high pulse current capabilities, and thermal stability ensure reliable performance across varied operational environments.
ONSEMI HUF75344G3 High-Performance Power MOSFET Specifications:
- Drain to Source Voltage: 55V
- Continuous Drain Current: 75A
- Pulsed Drain Current: 75A
- Drain to Gate Voltage: 55V
- Gate to Source Voltage: ±20V
- Maximum Power Dissipation: 285W (TO-247), 260W (TO-220AB)
- Package Types: TO-247, TO-220AB
- Operating Temperature Range: -55°C to 175°C
- Thermal Resistance Junction to Case: 0.82°C/W
- Thermal Resistance Junction to Ambient: 30°C/W (TO-247), 62°C/W (TO-220AB)
- Rise Time: 125ns
- Fall Time: 147ns
- Total Gate Charge: 175nC
- Gate Threshold Voltage: 2V to 4V
- Reverse Recovery Charge: 210nc
- Capacitance: Ciss 3200pF, Crss 310pF, Coss 1170pF
Buy the Fairchild HUF75344G3 – Reliable MOSFET for Industrial Applications
Order the Fairchild HUF75344G3 and HUF75344P3 now to ensure your designs benefit from high-efficiency switching, low on-resistance, and robust avalanche energy handling. These MOSFETs are perfect for switching regulators, motor drivers, and portable power systems. With a wide operating temperature range, excellent thermal performance, and high pulse current capability, they guarantee reliable operation in demanding environments. Secure your supply today and enhance your circuit’s efficiency with trusted, high-quality power MOSFETs designed for advanced electronic applications.
Buy Fairchild HUF75344G3 now and experience unmatched reliability and performance in power management and switching applications.
Frequently Asked Questions
Where can I buy ONSEMI HUF75344G3?
You can click on the BUY or RFQ button to purchase HUF75344G3 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part HUF75344G3?
You can download the HUF75344G3 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of HUF75344G3?
ONSEMI
