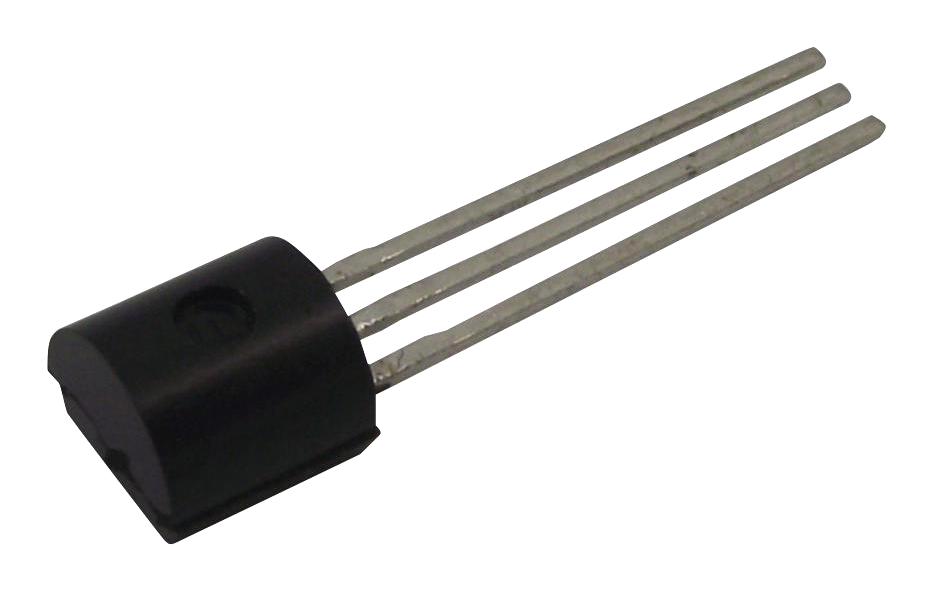

ONSEMI J111D26Z Analog Switch
The J111D26Z is a low-level analog switch designed for sample and hold circuits, chopper stabilized amplifiers, and general analog switching applications. It features source and drain interchangability, and is sourced from process 51 for reliable performance. Available in TO-92 packaging, this device offers low on-resistance and high voltage handling, making it ideal for precision analog signal switching. Its compact design and robust construction ensure consistent operation in various electronic systems, delivering excellent signal integrity and minimal distortion.
ONSEMI J111D26Z Analog Switch Specifications:
- Maximum Drain-Gate Voltage: 35 V
- Maximum Gate-Source Voltage: -35 V
- Forward Gate Current: 50 mA
- Operating Junction Temperature Range: -55 to 150°C
- Total Device Dissipation: 625 mW (J111), 350 mW (J112/J113)
- Thermal Resistance Junction-to-Case: 125°C/W
- Thermal Resistance Junction-to-Ambient: 200°C/W (J111), 357°C/W (J112/J113)
- Package: TO-92
- Device Type: N-Channel Switch
- Features: Designed for low-level analog switching, source & drain are interchangeable, suitable for sample and hold circuits and chopper amplified applications.
- Pin configuration: 3-pin, with standard JEDEC TO-92 dimensions.
- Mounting: Through-hole mounting on PCB, with specified thermal and mechanical standards.
Buy the Buy ON Semiconductor J111D26Z Part Number J111D26Z Online
Purchase the ON Semiconductor J111D26Z analog switch online today for reliable performance in precision signal switching applications. Featuring interchangable source and drain connections, it is ideal for sample and hold circuits, chopper stabilized amplifiers, and general analog switching. This device offers low on-resistance, high voltage ratings, and robust construction within a compact TO-92 package. Whether for low-level analog signals or demanding electronic systems, the J111D26Z ensures consistent, high-quality operation, supporting your application with excellent reliability and signal integrity.
Get ON Semiconductor J111D26Z today—built for low-voltage analog switching in compact design ensuring precision and long-lasting durability.
Frequently Asked Questions
Where can I buy ONSEMI J111D26Z?
You can click on the BUY or RFQ button to purchase J111D26Z from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part J111D26Z?
You can download the J111D26Z datasheet or visit the ONSEMI website for support.
Who is the manufacturer of J111D26Z?
ONSEMI
