ONSEMI KA431LZTA Adjustable Shunt Regulator
The KA431LZTA is a three-terminal adjustable shunt regulator with guaranteed thermal stability across the entire operating temperature range. It can set output voltages between approximately 2.5 V and 36 V using two external resistors, making it ideal as a replacement for Zener diodes in various applications. Featuring a low dynamic output impedance of 0.2 Ω and active circuitry for a sharp turn-on, it ensures stable voltage regulation. Its robust design is suitable for many electronic and power control systems, offering reliable performance over a wide temperature range.
ONSEMI KA431LZTA Adjustable Shunt Regulator Specifications:
- Output Voltage Range: 2.5 V to 36 V
- Thermal Stability: Guaranteed over -25°C to +85°C
- Dynamic Output Impedance: 0.2 Ω (Typical)
- Sink Current Capability: 1.0 to 100 mA
- Temperature Coefficient: 50 ppm/°C (Typical)
- Package: TO-92
- Reference Input Current Range: -0.05 to 10 mA
- Cathode Voltage: Vee 37 V
- Operating Temperature Range: -25°C to +85°C
- Junction Temperature: 150°C
- Storage Temperature Range: -65°C to +150°C
- Total Power Dissipation: 600 mW
- Maximum Cathode Current: ±150 mA
- Input Voltage Range: Up to 36 V
- AV Change per Volt: -2.0 to -0.5 mV/V

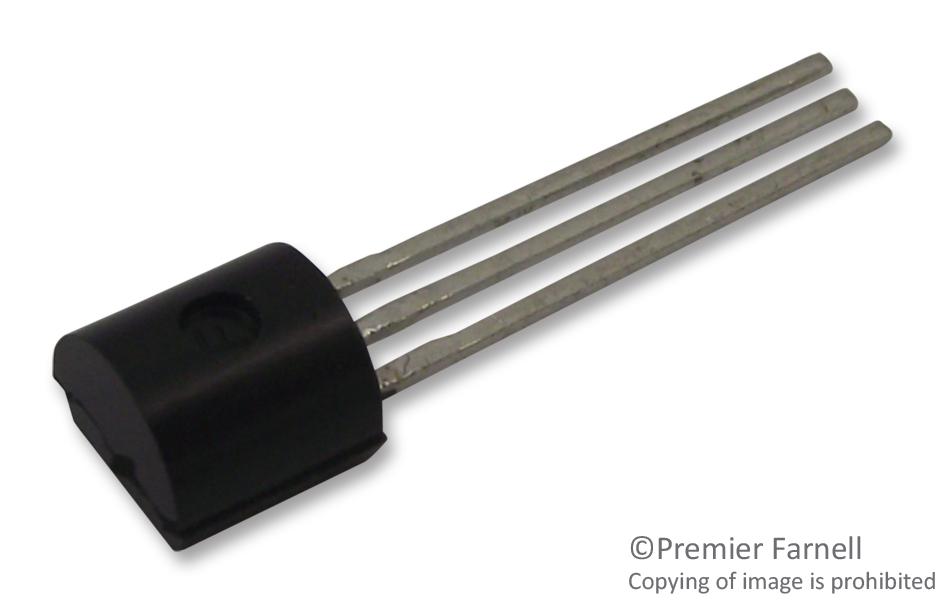

Buy the Buy Fairchild KA431LZTA Part Number KA431LZTA Online
Discover the KA431LZTA adjustable shunt regulator, offering precise voltage regulation from 2.5 V to 36 V. Its low impedance and thermal stability make it ideal for replacing Zener diodes in many electronic applications. With robust temperature performance and a TO-92 package, it ensures reliable operation in various power control and electronic systems. Purchase online today to enhance your circuit designs with a high-quality, adjustable voltage reference, ensuring consistent performance over a wide temperature range for your projects.
Buy Fairchild KA431LZTA now and experience unmatched voltage regulation stability and reliability for your electronic projects and power systems.
Frequently Asked Questions
Where can I buy ONSEMI KA431LZTA?
You can click on the BUY or RFQ button to purchase KA431LZTA from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part KA431LZTA?
You can download the KA431LZTA datasheet or visit the ONSEMI website for support.
Who is the manufacturer of KA431LZTA?
ONSEMI
