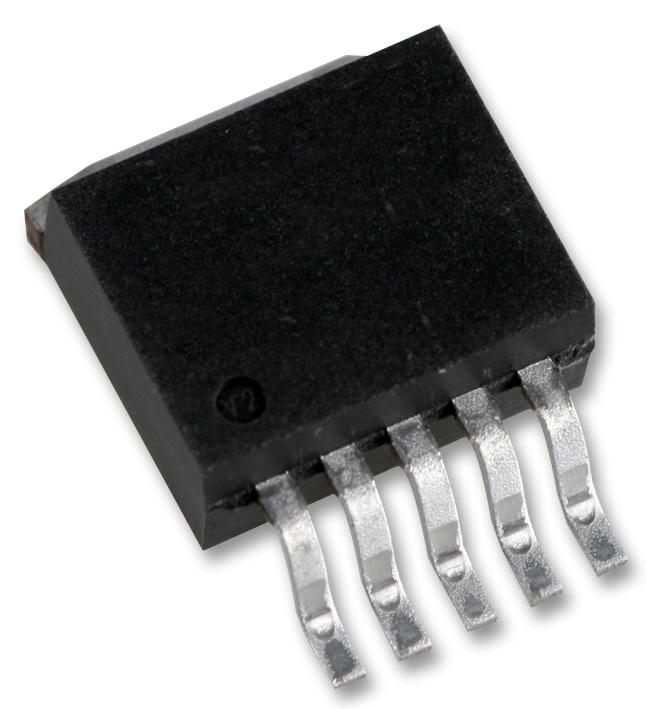

ONSEMI NCP59301DS50R4G High-Precision Voltage Regulator
The NCP59301DS50R4G is a high-precision, low-dropout voltage regulator capable of delivering over 3.0 A with a 5.0 V fixed output. Designed for applications requiring stable, efficient power regulation, it features fast transient response, thermal shutdown, and reverse current protection. Suitable for consumer electronics, industrial equipment, and point-of-regulation needs, this device operates with ceramic output capacitors for noise reduction and improved transient performance. Its compact D2PAK-5 package allows easy integration into various circuit designs, ensuring reliable performance in demanding conditions.
ONSEMI NCP59301DS50R4G High-Precision Voltage Regulator Specifications:
- Output Current in Excess of 3.0A
- Output Voltage: 5.0 V
- Dropout Voltage: 300 mV at 3A
- Input Voltage Range: 2.24 V to 13.5 V
- Regulation: Line and Load regulation within 0.02% to 2.5%
- Ground Pin Current: 90 mA at 3A load
- Thermal Shutdown and Reverse Current Protection
- Stable with ceramic output capacitors of 47 uF or greater
- Maximum Input Voltage: 18 V
- Package: D2PAK-5, Lead-free, Pb-Free
- Operating Temperature Range: -40°C to +125°C
- Error flag: open-collector, signals fault conditions
- Overcurrent Limiting: 5 A
- Fast transient response for load changes
- Enable pin compatible with TTL/CMOS logic
- AEC-Q100 qualified for automotive applications
Buy the onsemi Series NCP Series Voltage Regulator: NCP59301DS50R4G
Purchase the onsemi NCP59301DS50R4G today for reliable, high-current voltage regulation with low dropout and fast transient response. Perfect for consumer electronics, industrial machinery, and networking equipment, this 3A fixed 5V regulator features thermal shutdown, reverse current protection, and stable operation with ceramic capacitors. Its compact D2PAK-5 package simplifies integration into various circuits, ensuring efficient power management. Whether upgrading existing systems or designing new solutions, buy online now for quality, durability, and dependable performance in demanding environments.
Get onsemi NCP59301DS50R4G today—built for precision, efficiency, and long-lasting durability in power regulation applications.
Frequently Asked Questions
Where can I buy ONSEMI NCP59301DS50R4G?
You can click on the BUY or RFQ button to purchase NCP59301DS50R4G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP59301DS50R4G?
You can download the NCP59301DS50R4G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP59301DS50R4G?
ONSEMI
