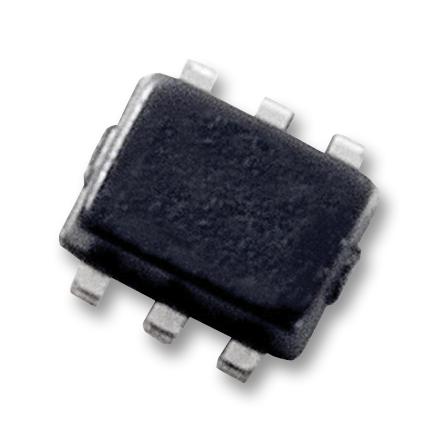

ONSEMI NSR0320XV6T1G High Current Schottky Diode
The NSRO320XV6T1 is a high current Schottky barrier diode designed for efficient power management in electronic circuits. Featuring low forward voltage of approximately 0.35 V at 10 mA, it provides superior performance in switching applications, power rectification, and high-frequency circuits. With a reverse voltage rating of 23 V and a forward current capacity of 1 A, this diode ensures reliable operation under demanding conditions. Packaged in a SOT-563 case, it is Pb-Free and suitable for automated surface-mount assembly, making it ideal for various industrial and consumer electronics applications.
ONSEMI NSR0320XV6T1G High Current Schottky Diode Specifications:
- Reverse Voltage: 23 V
- Forward Power Dissipation: 200 mW at 25°C
- Derate above 25°C: 2.0 mW/°C
- Forward Current (DC): 1 A
- Junction Temperature: Max 125°C
- Storage Temperature Range: -55°C to +150°C
- Total Capacitance: 30-35 pF at Va=5.0 V, f=1.0 MHz
- Reverse Leakage Current: 10-50 μA at Va=15 V
- Forward Voltage: 0.24-0.50 V at varying currents
- Package: SOT-563 (6-lead), Pb-Free
- Marking: Includes device, month, and Pb-Free indicator
- Case Dimensions: Length ~2.3 mm, Width ~1.4 mm, Height ~1.0 mm
- Soldering: Compatible with standard surface-mount reflow techniques
- Temperature Range: -55°C to +150°C
Buy the ON Semiconductor NSRO320XV6T1 – Reliable Schottky Diode for Industrial Applications
Purchase the ON Semiconductor NSRO320XV6T1 diode online today for your power and switching needs. This high current, low forward voltage diode offers 23V reverse voltage and 1A current capacity, ideal for power rectification and high-frequency applications. Packaged in a compact, Pb-Free SOT-563 case, it supports efficient surface-mount assembly in industrial electronics. Ensure your circuits operate reliably across a wide temperature range, benefiting from its robust specifications and proven quality. Order now for fast delivery and seamless integration into your electronic projects.
Buy ON Semiconductor NSRO320XV6T1 now and experience unmatched reliability and high performance in power management and high-frequency circuits.
Frequently Asked Questions
Where can I buy ONSEMI NSR0320XV6T1G?
You can click on the BUY or RFQ button to purchase NSR0320XV6T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSR0320XV6T1G?
You can download the NSR0320XV6T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSR0320XV6T1G?
ONSEMI
