ONSEMI LM2596TVADJG High-Efficiency Step-Down Voltage Regulator
The LM2596 is a high-efficiency monolithic step-down voltage regulator capable of delivering up to 3.0 A. It features adjustable output voltage from 1.23 V to 37 V, low dropout, and thermal shutdown for reliable operation. Suitable for switching power supplies, pre-regulators, and inverting configurations, it operates at 150 kHz, enabling small filter components. Its built-in line and load regulation, high efficiency, and optional features such as enable control make it ideal for various industrial, battery-powered, and electronic applications, with Pb-Free packages available for eco-friendly designs.
ONSEMI LM2596TVADJG High-Efficiency Step-Down Voltage Regulator Specifications:
- Maximum Input Voltage: up to 40 V
- Output Voltage Range: 1.23 V to 37 V
- Load Current: Guaranteed 3.0 A
- Switching Frequency: 150 kHz
- Operating Junction Temperature: -40°C to +125°C
- Thermal Shutdown and Current Limit Protections
- Pin: TO-220, D2PAK packages available
- Efficiency: Up to 93% under typical conditions
- Dropout Voltage: Typically 1.2 V at 3 A load
- Input Capacitor: Low ESR, typically 100 uF
- Output Capacitor: Low ESR aluminum electrolytic, 220 uF or greater
- Adjustable output via external resistors, feedback pin control
- Features: Enable/Shutdown pin, thermal protection
- RoHS compliant, Pb-Free packaging

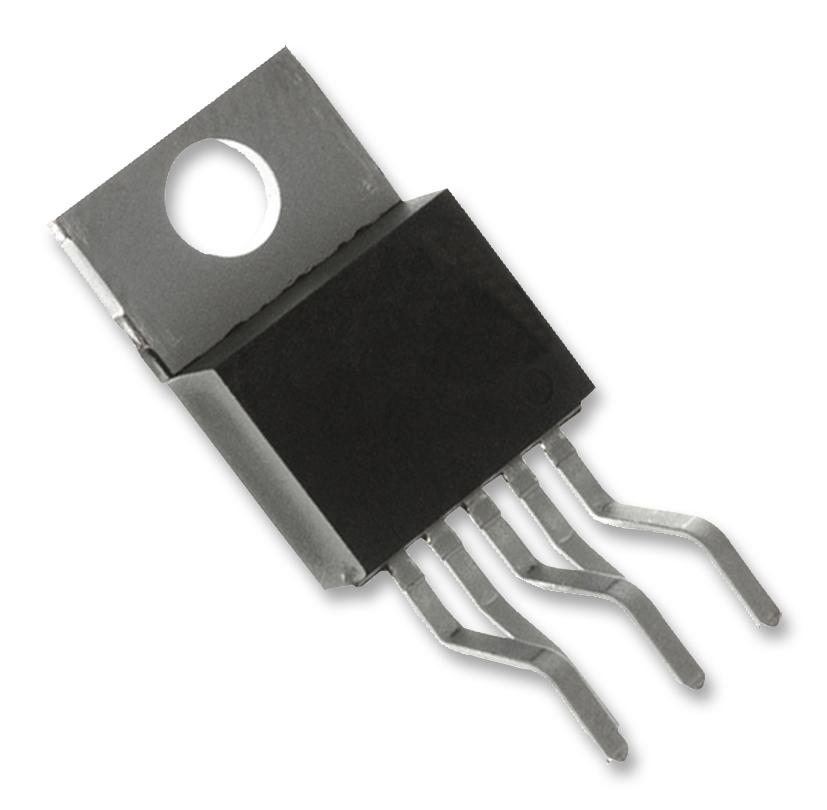

Buy the Buy ON Semiconductor LM2596 Series 3.0 A Regulator Part Number LM2596TVADJG Online
Enhance your power management with the LM2596 series, capable of delivering 3 amps of current with adjustable voltage from 1.23V to 37V. Its high-frequency operation of 150 kHz allows for compact filter components, making it ideal for space-constrained applications. With internal thermal shutdown, cycle-by-cycle current limiting, and optional enable control, it provides reliable protection across diverse operational conditions. Perfect for battery chargers, industrial power supplies, and electronic devices, this regulator supports eco-friendly, Pb-Free packages for environmentally conscious designs.
Order your ON Semiconductor LM2596TVADJG series 3A switching regulator today and elevate your power supply designs with dependable efficiency and high thermal protection.
Frequently Asked Questions
Where can I buy ONSEMI LM2596TVADJG?
You can click on the BUY or RFQ button to purchase LM2596TVADJG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2596TVADJG?
You can download the LM2596TVADJG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2596TVADJG?
ONSEMI
