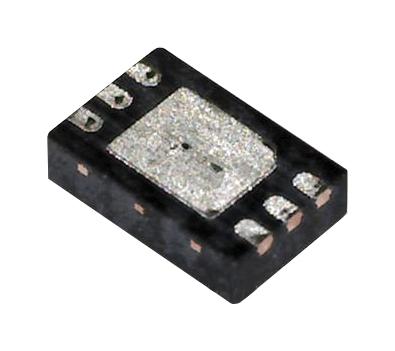

ONSEMI NCP1597AMNTWG Synchronous Buck Regulator
The NCP1597A is a high-frequency synchronous buck regulator designed for efficient power conversion in portable and electronic applications. Utilizing a fixed 1 MHz switching frequency, it integrates both high-side P-channel and low-side N-channel MOSFETs capable of delivering up to 2.0A. Featuring internal soft-start, cycle-by-cycle current limiting, thermal shutdown, and power saving modes, it ensures fast transient response and stability. The device operates from 4.0V to 5.5V input and offers adjustable output voltages as low as 0.8V, making it ideal for DSP power supplies, computer peripherals, LCD TVs, and networking equipment.
ONSEMI NCP1597AMNTWG Synchronous Buck Regulator Specifications:
- Input Voltage Range: 4.0 V to 5.5 V
- Output Voltage: Adjustable down to 0.8 V
- Maximum Output Current: 2.0 A
- Switching Frequency: Fixed 1 MHz
- Internal MOSFET Resistance: High-side 140 mΩ, Low-side 90 mΩ
- Cycle-by-Cycle Current Limiting, Overtemperature Protection
- Soft-Start Time: 1 ms typical
- Enable Pin Voltage Thresholds: High > 1.4 V, Low < 0.4 V
- Shutdown Supply Current: 30 µA max
- Operating Temperature Range: -40°C to +85°C
- Thermal Shutdown Threshold: 185°C with 30°C hysteresis
- Package: DFN6, 6-pin, thermally enhanced
- Dimensions: 3x3 mm case with exposed pad for heat dissipation
- Power Dissipation: Calculated considering conduction, switching, and quiescent losses
- Supports pre-bias startup, adaptive dead time, and power save mode
Buy the ON Semiconductor Series NCP1597A Synchronous Buck Regulator: NCP1597AMNTWG
Purchase the ON Semiconductor NCP1597AMNTWG online today and experience reliable, high-efficiency power conversion for your electronic projects. Perfect for portable devices, computer peripherals, LCD TVs, and networking equipment, this 6-pin DFN device integrates high- and low-side MOSFETs, offers adjustable output voltages from 0.8V, and features a fixed 1 MHz switching frequency for excellent transient response. Its low quiescent current, soft-start circuitry, and thermal shutdown ensure safe and efficient operation. Buy online now for fast delivery and trusted quality in power management solutions.
Get ON Semiconductor NCP1597AMNTWG today—built for precision, high efficiency, and reliable power regulation in demanding electronic systems.
Frequently Asked Questions
Where can I buy ONSEMI NCP1597AMNTWG?
You can click on the BUY or RFQ button to purchase NCP1597AMNTWG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1597AMNTWG?
You can download the NCP1597AMNTWG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1597AMNTWG?
ONSEMI
