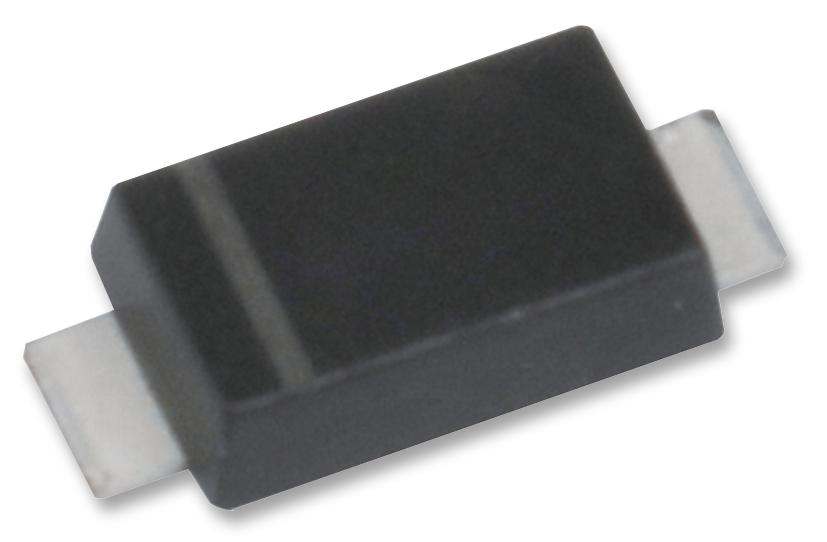

ONSEMI S1GFL general-purpose rectifier diode
The S1GFL is a general-purpose rectifier diode designed for applications requiring high current handling and low forward voltage, housed in a SOD-123F package with an ultra-thin profile of only 1.08 mm. It features UL 94V-0 flammability rating, is Pb-free, halogen-free, and RoHS compliant, suitable for various electronic and power rectification needs. With a maximum repetitive peak reverse voltage of 600V and an RMS voltage of 420V, it handles an average forward current of 1A, making it reliable for industrial circuits. The device offers low junction capacitance and robust thermal characteristics for effective heat dissipation.
ONSEMI S1GFL general-purpose rectifier diode Specifications:
- Package Type: SOD-123F
- Maximum Recurrent Peak Reverse Voltage: 600V
- Maximum RMS Voltage: 420V
- DC Blocking Voltage: 600V
- Average Forward Current: 1A
- Peak One Cycle Forward Current: 30A
- Maximum Operating and Storage Temperature Range: -55°C to +150°C
- Typical Thermal Resistance Junction-to-Ambient: 140 °C/W
- Typ. Thermal Resistance Junction-to-Lead: 25 °C/W
- Forward Voltage at 1A: Typical value not specified, but generally low
- Reverse Recovery Time: Typical value not specified, generally low
- Junction Capacitance: Typically 4 pF at 4V, 1.0 MHz
- Device mounted on FR-4 PCB with standard thermal test conditions
- Case Outline: SOD-123F, Dimensions in millimeters as specified
Buy the ON Semiconductor S1GFL – Reliable General-Purpose Rectifier for Industrial Applications
Buy the ON Semiconductor S1GFL today for your power supply and electronic applications. This high-current rectifier diode features a compact ultra-thin profile, 600V peak reverse voltage, and 1A current capacity. It's RoHS compliant, Pb-free, halogen-free, ensuring safety and environmental standards. Suitable for power rectification in industrial, consumer, and automotive electronics, it offers excellent thermal characteristics, low junction capacitance, and robust performance in demanding environments. Order now for reliable circuit performance and long-lasting durability.
Get ON Semiconductor S1GFL today—built for reliable power rectification and industrial circuit stability.
Frequently Asked Questions
Where can I buy ONSEMI S1GFL?
You can click on the BUY or RFQ button to purchase S1GFL from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part S1GFL?
You can download the S1GFL datasheet or visit the ONSEMI website for support.
Who is the manufacturer of S1GFL?
ONSEMI
