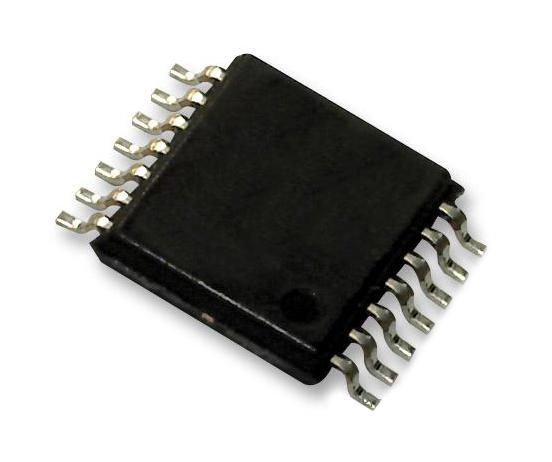

ONSEMI LM2901DTBR2G Quad Comparator
The LM2901DTBR2G is a quad comparator IC designed for high gain and wide bandwidth applications including zero crossing detection, level sensing, and signal comparison in industrial, automotive, and consumer electronics. It operates with a single supply voltage from 3.0 V to 36 V or split supplies from 1.5 V to 18 V. Features include low input bias current of 25 nA, low input offset voltage, TTL and CMOS compatibility, ESD protection, and Pb-Free RoHS compliance, making it reliable for various high-performance electronic systems.
ONSEMI LM2901DTBR2G Quad Comparator Specifications:
- Supply Voltage: 3.0 V to 36 V (single supply), 1.5 V to 18 V (split supply)
- Input Bias Current: 25 nA (typ)
- Input Offset Voltage: Low
- Input Common Mode Voltage Range: GND to Vcc or Voc
- Output Saturation Voltage: 130 mV (typ) @ 4.0 mA
- ESD Protection: 200 V (Human Body Model)
- Power Dissipation: 1.0 W max at 25°C, derates 8 mW/°C
- Junction Temperature: 150°C
- Operating Temperature: -25°C to +85°C
- Pb-Free, RoHS and Halogen Free
Buy the ON Semiconductor Series Quad Comparator: LM2901DTBR2G
Experience high precision signal comparison with the ON Semiconductor LM2901DTBR2G quad comparator. Designed for industrial, automotive, and consumer electronics, it offers a wide supply voltage range of 3.0 V to 36 V, low input bias current of 25 nA, and ESD protection for enhanced reliability. Its low saturation voltage of 130 mV at 4.0 mA ensures efficient operation. Certified for RoHS compliance, this device is perfect for applications requiring high-speed voltage comparison, level detection, and zero crossing detection, ensuring optimal performance in your electronic designs.
Buy ON Semiconductor LM2901DTBR2G now and experience unmatched reliability and performance in signal comparison and level detection tasks.
Frequently Asked Questions
Where can I buy ONSEMI LM2901DTBR2G?
You can click on the BUY or RFQ button to purchase LM2901DTBR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM2901DTBR2G?
You can download the LM2901DTBR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM2901DTBR2G?
ONSEMI
