ONSEMI LM324DR2G Quad Operational Amplifier
The LM324DR2G is a quad operational amplifier featuring true differential inputs. Designed for single-supply applications, it operates from 3V to 32V with low quiescent currents, considerably less than MC1741. Its common-mode voltage includes the negative supply rail, reducing external biasing components. The device's output voltage range includes the negative supply voltage, providing flexible performance. It has protected outputs against short circuits, internal compensation, industry-standard pinouts, and ESD protection on inputs to improve durability. Suitable for automotive and industrial use, the LM324DR2G excels in rugged, reliable circuit design.
ONSEMI LM324DR2G Quad Operational Amplifier Specifications:
- Supply Voltage Range: 3V to 32V
- Input Common Mode Voltage Range: 0.3V to Vcc
- Output Voltage Range: Includes negative supply
- Short Circuit Protected Outputs
- Low Input Bias Current: Max 100 nA (LM324A)
- Internal Compensation
- Pin Configuration: Industry standard
- ESD Protection: On inputs, 2000V HBM
- Junction Temperature Max: 150°C
- Thermal Resistance (Junction to Air): Case dependent (118°C/W for case 646)
- Storage Temperature Range: -65°C to +150°C
- Operating Temperature Range: 0°C to +70°C
- Package Types: PDIP-14, SOIC-14, TSSOP-14

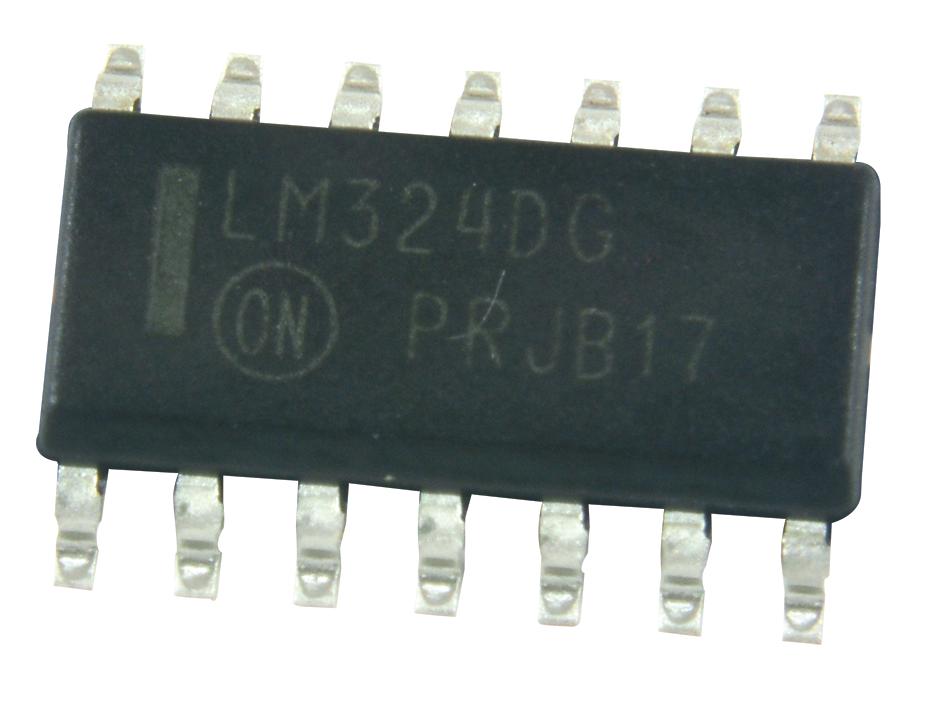

Buy the ON Semiconductor LM324DR2G – Reliable Quad Operational Amplifier for Industrial Applications
Securely purchase the LM324DR2G quad operational amplifier online today. This rugged, internally compensated device offers low power consumption, wide voltage operation from 3V to 32V, and protected outputs suitable for automotive and industrial applications. Its true differential inputs allow flexible circuit design, while internal ESD protection ensures durability against electrostatic discharge. With industry-standard pinouts and excellent temperature ratings, this quad op-amp provides reliable performance in demanding environments. Order now to enhance your project’s stability and efficiency with a proven, high-quality component.
Order your ON Semiconductor LM324DR2G quad op-amp today and enhance your industrial and automotive circuits with dependable, low-power performance.
