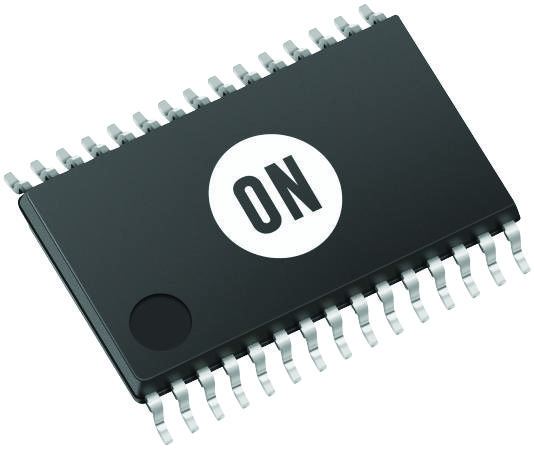

ONSEMI LV8136VTLMH Brushless Motor Control IC
The LV8136V is a PWM system predriver IC designed for three-phase brushless motors, supporting quiet PWM drive, phase control, and power-saving modes. It features protection circuits, reverse/forward switching, Hall bias, and thermal shutdown to ensure reliability in driving large motors such as air conditioners and heaters. The IC operates with a supply voltage range of 9.5V to 16.5V, includes protective circuits, current limiters, and phase adjustment capabilities, making it ideal for efficient, noise-reducing motor control in industrial applications.
ONSEMI LV8136VTLMH Brushless Motor Control IC Specifications:
- Supply voltage range: 9.5V to 16.5V
- Output current max: 15 mA
- Allowable power dissipation: 0.45 W (IC), 1.05 W (mounted)
- Junction temperature: 150°C max
- Operating temperature: -40°C to +105°C
- Storage temperature: -85°C to +150°C
- Hall input sensitivity: 80 mVpp
- PWM oscillation frequency: about 17 kHz
- Thermal shutdown TSD: about 175°C with 35°C hysteresis
- Power saving mode: zero power consumption in power-save state
- Control input voltage range: 0V to VREG (around 5V)
- Peak output voltage: VREG, with minimum and maximum limits specified
- Built-in protection: thermal, low-voltage, and current limiting
- Pin functions include hall input, phase control, F/R switching, fault detection, and power regulation
- Package dimensions: approx. 32.2mm x 10.2mm, SSOP30 package
