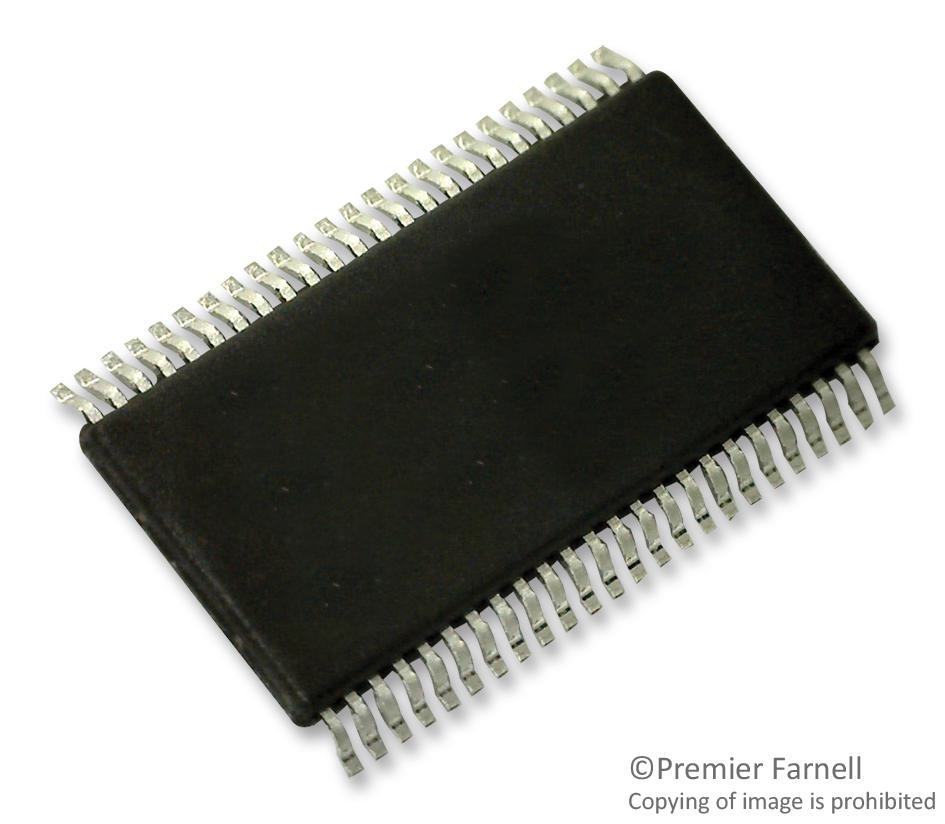

ONSEMI M74LCX16374DTR2G 16-bit CMOS Flip-Flop
The MC74LCX16374 is a high-performance, low-voltage 16-bit D-type flip-flop device operating from 2.3 V to 3.6 V supply. It features byte control with separate Output Enable and Clock Pulse inputs per byte, supporting full 16-bit operation. With 5.0 V-tolerant inputs and TTL-compatible outputs, it offers low static power consumption, high drive capability, and fast switching times. Its low impedance inputs and outputs support live insertion and withdrawal, making it suitable for high-speed digital systems requiring efficient data storage and transfer in industrial automation and communication applications.
ONSEMI M74LCX16374DTR2G 16-bit CMOS Flip-Flop Specifications:
- Operating Voltage: 2.3 V to 3.6 V, 5.5 V Vj max for input safety
- Maximum Propagation Delay: 6.2 ns
- Input Voltage Range: 0 V to 5.5 V
- Output Voltage: 0 V to Vcc
- Output Current: ±24 mA (sink/source)
- Static Power Consumption: near zero in all states
- Maximum Tstg (Storage Temperature): -65°C to +150°C
- Supports 170 MHz clock frequency
- ESD resilience: >2000 V (HBM), >200 V (MM)
- Pb-Free, RoHS Compliant, Halogen-Free
- Package Type: TSSOP-48
- Pin configuration includes separate clock and enable inputs per byte
Buy the ON Semiconductor MC74LCX16374 – Reliable High-Speed Flip-Flop for Industrial Applications
Purchase the MC74LCX16374 now to enhance your digital system performance with high-speed, low power CMOS flip-flops. Designed for industrial and communication applications, this 16-bit device offers excellent data storage, fast switching, and 5.0 V tolerant inputs. Its byte control features, TTL compatibility, and robust power management make it ideal for high-speed data transfer and storage solutions. Order today and experience reliable operation, efficient power consumption, and seamless integration into your automated equipment or control systems.
Get ON Semiconductor MC74LCX16374 today—built for speed, low power, and reliable data storage in demanding industrial and communication systems.
