ONSEMI M74VHC1GT14DTT1G Logic Gate Inverter
The MC74VHC1GT14 is a high-performance CMOS Schmitt-trigger inverter designed for digital logic applications. It features TTL-compatible inputs, CMOS output levels, and robust protection against overvoltage and ESD. This single-gate device operates at high speeds with a propagation delay of approximately 4.5 ns, making it ideal for switching, noise filtering, and waveform shaping tasks. Its low power dissipation, combined with immunity to hot insertion and voltage mismatch, ensures reliable operation across a wide temperature range, suitable for modern digital systems requiring level shifting and signal stabilization.
ONSEMI M74VHC1GT14DTT1G Logic Gate Inverter Specifications:
- DC Supply Voltage: 3.0 to 5.5 V
- Input Voltage: 0.0 to 5.5 V
- Output Voltage: Vout > 0.8V @ 20 mA; Vout < 0.1V @ 20 mA
- Propagation Delay: approximately 4.5 ns at Vcc = 5V
- Input Threshold Voltage: Positive Vt+ = 1.20 to 1.60 V; Negative Vr- = 0.35 to 0.93 V
- Hysteresis Voltage: 0.30 to 1.20 V
- Power Dissipation: 200 mW maximum in still air
- Maximum Input and Output Diode Current: ±20 mA
- Operating Temperature Range: -55°C to +125°C
- ESD Protection: >2000 V Human Body Model
- Device Package: SOT-353 (SC-88A), SOT-23-5, TSOP-5
- Thermal Resistance: 333°C/W (SC-88A)
- Maximum Power Dissipation: 200 mW
- Lead Temperature for Soldering: 260°C for 10 seconds

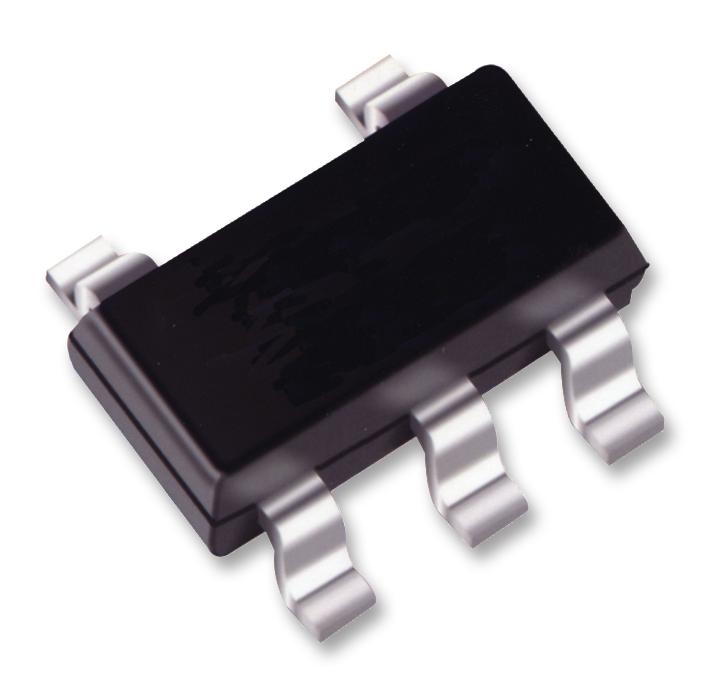

Buy the Buy ON Semiconductor MC74VHC1GT14 Part Number M74VHC1GT14DTT1G Online
