ONSEMI MBRM120ET3G Schottky Rectifier
The MBRM120ET3G is a surface-mount Schottky Power Rectifier housed in a molded epoxy case. It utilizes the Schottky barrier principle with barrier metal and epitaxial construction to offer an optimal balance between forward voltage drop and reverse current. Its advanced packaging ensures a highly efficient, micro-miniature, space-saving surface-mount rectifier. Featuring a unique heat-sink design, it provides thermal performance comparable to larger SMA packages while being approximately 50% smaller in footprint and having a low profile of around 1.1mm, ideal for portable and battery-powered devices. This rectifier is suitable for applications such as AC-DC and DC-DC converters, reverse battery protection, and multi-voltage regulation where performance and size are critical. It is AEC-Q101 qualified and PPAP capable, making it suitable for various power management, consumer electronics, communication, automotive, and computer applications.
ONSEMI MBRM120ET3G Schottky Rectifier Specifications:
- Maximum Reverse Voltage: 20 V
- Average Rectified Forward Current: 1.0 A
- Peak Repetitive Forward Current: 2.0 A
- Peak Surge Current: 50 A
- Thermal Resistance - Junction-to-Lead: 35 °C/W
- Junction-to-Tab: 23 °C/W
- Junction-to-Ambient: 277 °C/W
- Forward Voltage at 1.0 A: 0.530 V (typical at 25°C)
- Reverse Current at 25°C: 10 μA
- Reverse Current at 100°C: 1600 μA
- Operating Junction Temperature Range: -65°C to 150°C
- Size: Molded epoxy, low profile, approx. 1.1mm height
- Package: JEDEC registered DO-216AA (PowerMITE case 457)
- Lead Soldering Max Temperature: 260°C for 10 seconds
- Compliance: Pb-Free, RoHS compliant
- ESD Rating: >16,000 V (Human Body Model), >400 V (Machine Model)

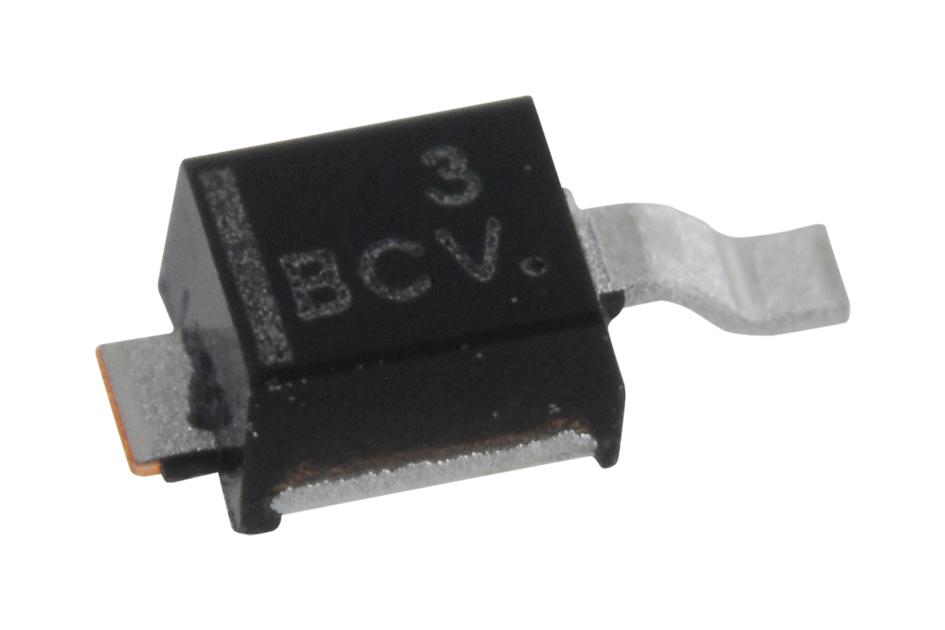

Buy the ON Semiconductor Series POWERMITE Schottky Power Rectifier: MBRM120ET3G
Purchase the ON Semiconductor MBRM120ET3G Schottky Rectifier online today and benefit from its compact size, high efficiency, and low forward voltage drop. Designed for space-constrained applications like portable electronics, converters, and power protection modules, this surface-mount rectifier features a low profile of about 1.1mm and excellent thermal performance. Its AEC-Q101 qualification and Pb-Free construction ensure durability and safety in automotive, consumer, and communication devices. Order now for fast delivery and secure your power management needs with reliable, high-performance rectification.
Buy ON Semiconductor MBRM120ET3G now and experience unmatched reliability and compact efficiency in power rectification.
Frequently Asked Questions
Where can I buy ONSEMI MBRM120ET3G?
You can click on the BUY or RFQ button to purchase MBRM120ET3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MBRM120ET3G?
You can download the MBRM120ET3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MBRM120ET3G?
ONSEMI
