ONSEMI FDC606P PowerTrench MOSFET
The FDC606P is a P-Channel 1.8V specified PowerTrench MOSFET designed for battery power management applications. It features high-speed switching, low Rds(on) of 26 mΩ at Ves = 4.5 V, and 35 mΩ at Ves = 2.5 V, making it ideal for load switching and battery protection. With a drain current of 6A and a drain-source voltage of -12V, it offers reliable performance in compact encapsulations. The device operates up to +150°C and dissipates up to 16 W, ensuring long-lasting efficiency in power-constrained environments.
ONSEMI FDC606P PowerTrench MOSFET Specifications:
- Drain-Source Voltage: -12 V
- Gate-Source Voltage: +8 V
- Continuous Drain Current: 6 A
- Pulsed Drain Current: 20 A
- Maximum Power Dissipation: 16 W
- Operating Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 78°C/W
- Thermal Resistance, Junction-to-Case: 30°C/W
- Breakdown Voltage: 12 V
- Gate Threshold Voltage: -0.57 V to -1.5 V
- On-Resistance: 26 mΩ at Ves = 4.5 V
- Body Diode Forward Voltage: 0.6 V at 137 A
- Input Capacitance: 1699 pF
- Output Capacitance: 679 pF
- Switching Times: On delay 4-19 ns, Rise time 10-20 ns, Off delay 89-142 ns, Fall time 70-112 ns
- Gate Charge: 18-25 nC
- Package: PowerTrench, Tape & Reel 3000 units

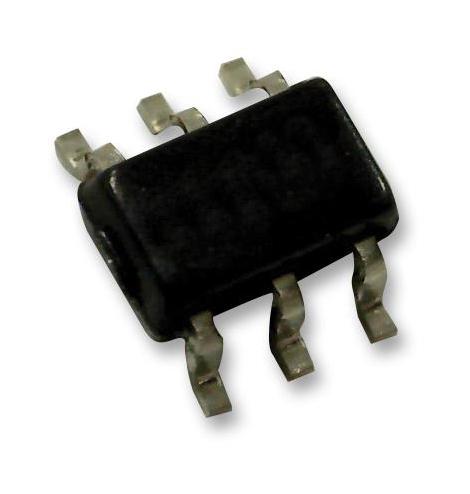

Buy the Buy ON Semiconductor FDC606P Part Number FDC606P Online
Experience the efficiency and reliability of the ON Semiconductor PowerTrench MOSFET FDC606P, perfect for battery management and load switching applications. With low on-resistance and high-speed switching capabilities, it ensures optimal power efficiency and fast response times. Its high maximum junction temperature and power dissipation make it suitable for demanding environments, while the compact package simplifies integration into modern electronic devices. Purchase the FDC606P online today to benefit from superior performance and long-lasting durability in your electronic projects.
Get ON Semiconductor FDC606P today—built for high-speed switching, low Rds(on), and reliable power management in compact designs.
Frequently Asked Questions
Where can I buy ONSEMI FDC606P?
You can click on the BUY or RFQ button to purchase FDC606P from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part FDC606P?
You can download the FDC606P datasheet or visit the ONSEMI website for support.
Who is the manufacturer of FDC606P?
ONSEMI
