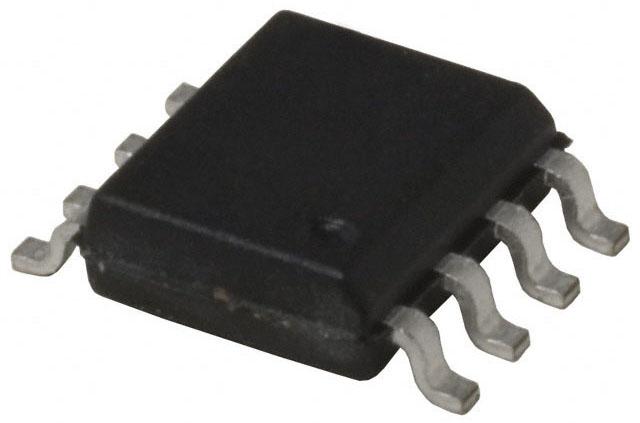

ONSEMI MC100LVEL11DG Differential Fanout Buffer
The MC100LVEL11 is a high-performance differential 1:2 fanout buffer designed for reliable high-speed ECL and PECL applications. Offering an extremely low propagation delay of around 330 ps, it features high bandwidth output transitions and minimal skew between outputs, making it suitable for precise clock distribution in data centers, telecommunications, and industrial systems. Its internal input resistors provide stability under open conditions, and it supports a wide operating voltage range from 3.0 V to 3.8 V. The device is RoHS compliant, Pb-free, and features robust ESD protection, ensuring dependable operation in critical environments.
ONSEMI MC100LVEL11DG Differential Fanout Buffer Specifications:
- Operating Voltage: 3.0 V to 3.8 V
- Propagation Delay: ~330 ps
- Skew Between Outputs: 5 ps
- Maximum Frequency: 1.0 GHz
- Output Voltage HIGH: 2.295 V to 2.420 V (typ), LOW: 1.605 V to 1.745 V (typ)
- Input Voltage HIGH: 2.135 V to 2.420 V, LOW: 1.490 V to 1.825 V
- Input Resistance: 75 kΩ (pull-up and pull-down)
- ESD Protection: >4kV Human Body Model
- Thermal Resistance (Junction-to-Ambient): SOIC-8: 190°C/W
- Maximum Operating Temperature: 40°C to +95°C
- Package Types: SOIC-8, TSSOP-8, DFN8
- RoHS Compliant, Pb-Free
- Designed for high-speed clock distribution and data communication
Buy the ON Semiconductor MC100LVEL11 – Reliable Differential Fanout Buffer for Industrial Applications
Upgrade your electronic systems with the MC100LVEL11, a high-performance differential fanout buffer that ensures low delay, minimal skew, and robust stability. Designed for precise signal distribution in industrial automation, telecommunications, and data centers, this device supports a wide voltage range up to 3.8 V and offers excellent ESD protection for durable operation. Its compact packages—SOIC-8, TSSOP-8, and DFN8—enable versatile integration, making it the ideal choice for engineers demanding speed, reliability, and efficiency in their high-frequency applications.
Order your ON Semiconductor MC100LVEL11 differential fanout buffer today and enhance your high-speed clock distribution with the utmost reliability and performance.
Frequently Asked Questions
Where can I buy ONSEMI MC100LVEL11DG?
You can click on the BUY or RFQ button to purchase MC100LVEL11DG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC100LVEL11DG?
You can download the MC100LVEL11DG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC100LVEL11DG?
ONSEMI
