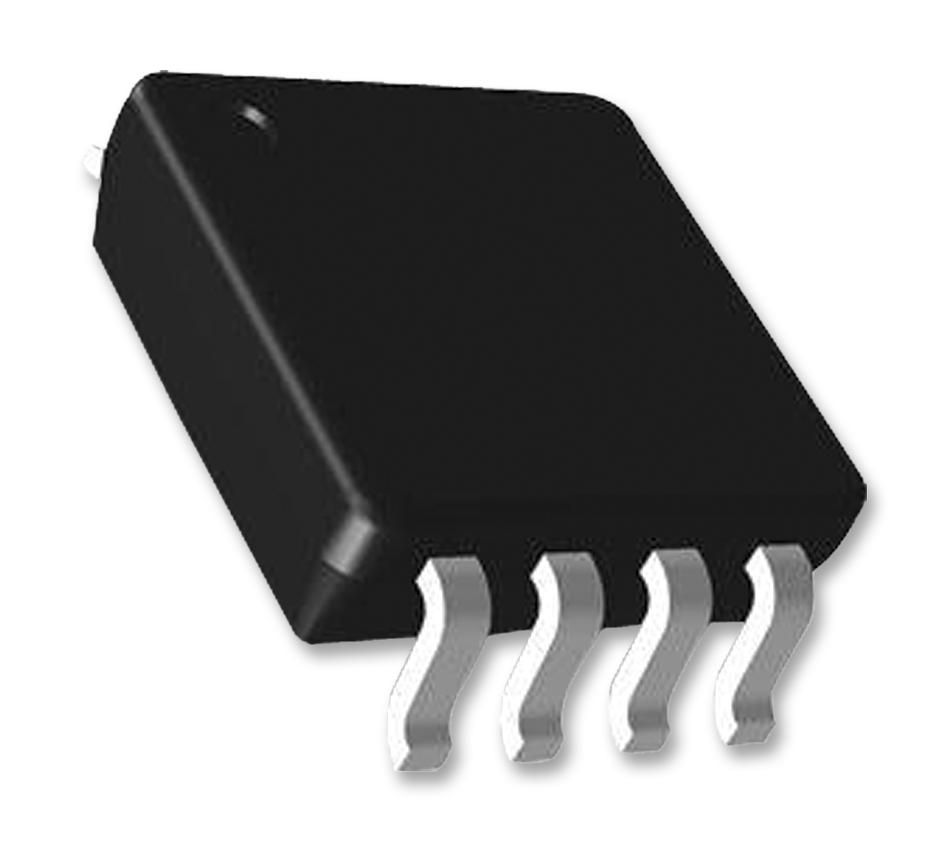

ONSEMI NC7NZ14K8X High-Speed CMOS Inverter
The NC7NZ14 is a high-speed inverter with Schmitt trigger input from Fairchild's Ultra-High Speed TinyLogic series. Fabricated with advanced CMOS technology, it offers ultra-high speed with high output drive while maintaining low static power dissipation over a broad voltage range of 1.65 V to 5.5 V. Features include over-voltage tolerance inputs, power-down high impedance mode, and proprietary noise/EMI reduction circuitry in compact MicroPak packages. Suitable for high-speed logic applications where space and power efficiency are critical.
ONSEMI NC7NZ14K8X High-Speed CMOS Inverter Specifications:
- Supply Voltage Range: 1.65 V to 5.5 V
- Maximum Operating Voltage: 7.0 V
- Input Voltage Tolerance: Up to 7 V
- Output Drive: +24 mA at 3 V Vcc
- Propagation Delay: 3.7 ns (Typical) into 50 pF at 5 V
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 250 mW at +85°C
- Package: MicroPak™, 8-Lead, JEDEC MO-187
- Over-Voltage Tolerance Inputs
- Noise/EMI Reduction Circuitry
- High-impedance Inputs/Outputs during power-down
- Pin Configuration: 8-Lead MicroPak in a space-saving package
- Materials: CMOS technology, advanced fabrication process
- Certified by JEDEC standards
- Shock and ESD Resistant: 4000 V (Human Body Model), 2000 V (Charge Device Model)
Buy the ON Semiconductor Series TinyLogic NC7NZ14: NC7NZ14K8X
Buy the ON Semiconductor Series TinyLogic NC7NZ14K8X inverter online today for your high-speed digital designs. Featuring ultra-low power consumption, over-voltage tolerance, and a compact MicroPak package, it provides efficient performance across a broad voltage range. Ideal for space-constrained applications requiring fast switching, low static power, and noise reduction. With excellent thermal and electrical characteristics, this inverter enhances your circuit reliability and efficiency, ensuring your projects perform flawlessly in demanding environments. Order now and ensure top-tier performance for your electronic systems.
Order your ON Semiconductor Series TinyLogic NC7NZ14K8X inverter today and give your digital projects the dependability and speed they deserve.
Frequently Asked Questions
Where can I buy ONSEMI NC7NZ14K8X?
You can click on the BUY or RFQ button to purchase NC7NZ14K8X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NC7NZ14K8X?
You can download the NC7NZ14K8X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NC7NZ14K8X?
ONSEMI
