ONSEMI MC34161DMR2G Voltage Monitor
The MC34161DMR2G is a versatile, low voltage power monitoring device designed for precise voltage detection in industrial, automotive, and consumer electronics. It features two comparator channels with hysteresis, a Mode Select Input for flexible channel configuration, and a 2.54 V reference with short-circuit protection. Capable of detecting over, under, and window voltages for both positive and negative signals, it operates fully at supply voltages as low as 2.0 V for positive and 4.0 V for negative sensing, making it ideal for critical voltage monitoring applications.
ONSEMI MC34161DMR2G Voltage Monitor Specifications:
- Operating Voltage Range: 2.0 V to 40 V (positive sensing), 4.0 V to 40 V (negative sensing)
- Reference Voltage: 2.54 V ±2.4% with short-circuit protection
- Comparator Threshold: 1.27 V ±2.0% with 25 mV hysteresis
- Input Bias Current: 60 nA (typical)
- Output Type: Open collector capable of sinking >10 mA
- Maximum Power Dissipation: 800 mW for plastic case 626, 450 mW for case 751, 240 mW for Micro8 case
- Operating Temperature Range: -40°C to +125°C depending on variant
- Thermal Resistance: Junction-to-ambient 240°C/W (Micro8 case), 100°C/W (Case 626)
- Package Types: PDIP-8, SOIC-8, Micro8

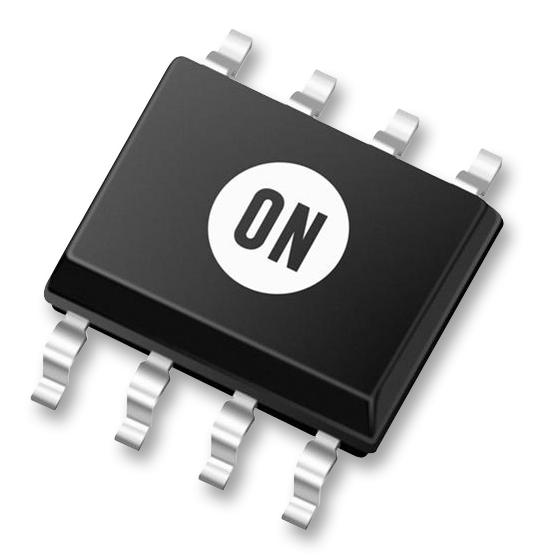

Buy the Buy ON Semiconductor Voltage Monitor Part Number MC34161DMR2G Online
Purchase the ON Semiconductor MC34161DMR2G online today and enhance your voltage sensing applications with this flexible, reliable, and cost-effective voltage monitoring device. Its dual comparator channels enable over, under, and window detection for both positive and negative voltages, providing high precision with hysteresis to prevent oscillations. Capable of operating at low voltages from 2.0 V for positive signals and 4.0 V for negative signals, it's ideal for industrial, automotive, and consumer electronics requiring continuous voltage supervision. Order now for quick delivery and improve your system’s reliability!
Get ON Semiconductor MC34161DMR2G today—designed for accurate voltage detection in industrial, automotive, and consumer systems with low power consumption.
Frequently Asked Questions
Where can I buy ONSEMI MC34161DMR2G?
You can click on the BUY or RFQ button to purchase MC34161DMR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC34161DMR2G?
You can download the MC34161DMR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC34161DMR2G?
ONSEMI
