ONSEMI MC14538BDTR2G Dual Monostable Multivibrator
The MC14538B is a dual, retriggerable, resettable monostable multivibrator designed for precise pulse generation and timing applications. It can be triggered from either positive or negative edges, producing accurate pulse widths determined by external resistors and capacitors. Operating at voltages between 3.0 V and 18 V, this device features adjustable output pulse widths from 10 microseconds to 10 seconds. Its flexible design allows it to drive multiple TTL loads and offers features like separate reset inputs, making it suitable for various timing and pulse control circuits in industrial, automotive, and digital electronics.
ONSEMI MC14538BDTR2G Dual Monostable Multivibrator Specifications:
- Supply Voltage Range: 3.0 V to 18 V
- Output Pulse Width Range: 10 μs to 10 s
- Trigger Inputs: Positive or Negative edge triggered
- Reset Inputs: Separate, resettable
- Maximum Operation Temperature: -55°C to +125°C
- Minimum Rise and Fall Time: 5 ns to 100 ns depending on load
- Output Drive Capability: Drives two low-power TTL loads or one TTL load

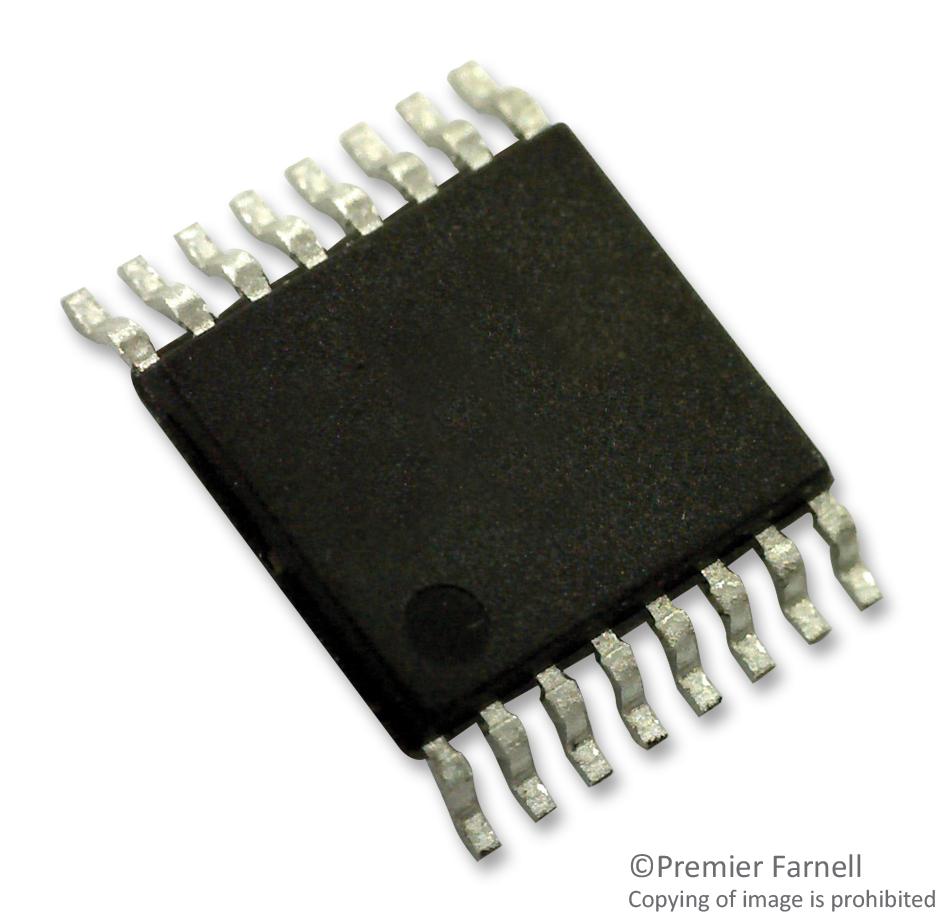

Buy the Buy ON Semiconductor MC14538B Part Number MC14538BDTR2G Online
Purchase the MC14538B online from authorized distributors for seamless integration into your timing, pulse shaping, or delay circuits. This device offers high performance with adjustable pulse widths from 10 microseconds to 10 seconds, suitable for industrial, automotive, and digital systems. Its built-in reset and trigger options ensure flexible operation, while its wide voltage range of 3 to 18 volts makes it ideal for various power environments. Ensure optimal operation by sourcing genuine parts online, backed by technical support for your engineering needs.
Buy ON Semiconductor MC14538B now and experience unmatched reliability and performance in timing and pulse generation applications.
Frequently Asked Questions
Where can I buy ONSEMI MC14538BDTR2G?
You can click on the BUY or RFQ button to purchase MC14538BDTR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC14538BDTR2G?
You can download the MC14538BDTR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC14538BDTR2G?
ONSEMI
